Product Summary

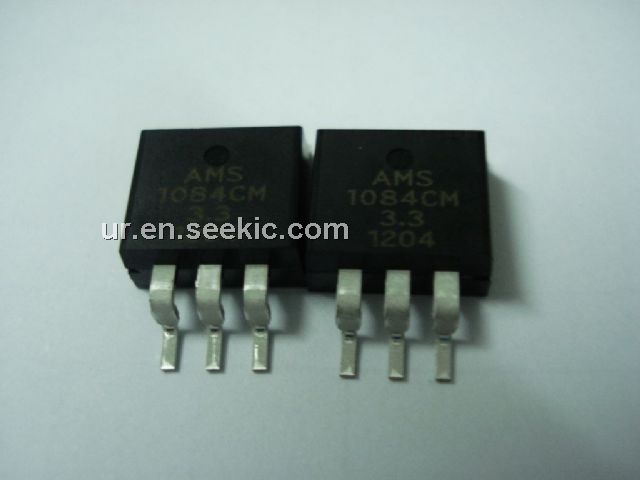

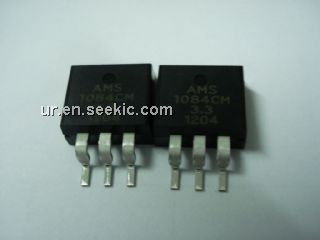

The AMS1084CM-3.3 is AMS1084 series of adjustable and fixed voltage regulators are designed to provide 5A output current and to operate down to 1V input-to-output differential. The dropout voltage of the device is guaranteed maximum 1.5V at maximum output current, decreasing at lower load currents. On-chip trimming adjusts the reference voltage to 1%. Current limit is also trimmed, minimizing the stress under overload conditions on both the regulator and power source circuitry.
Parametrics
AMS1084CM-3.3 absolute maximum ratings:(1)Input Voltage: 15V; (2)Storage temperature: - 65°C to +150°C; (3)Operating Junction Temperature: 0°C to 125°C.
Features
AMS1084CM-3.3 features: (1)Three Terminal Adjustable or Fixed 1.5V, 2.5V, 2.85V, 3.0V, 3.3V, 3.5V and 5.0V; (2)Output Current of 5A; (3)Operates Down to 1V Dropout; (4)Line Regulation: 0.015%; (5)Load Regulation: 0.1%; (6)TO-220, TO-263 and TO-252 packages available.

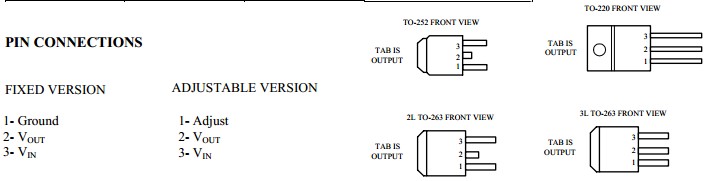

Diagrams
