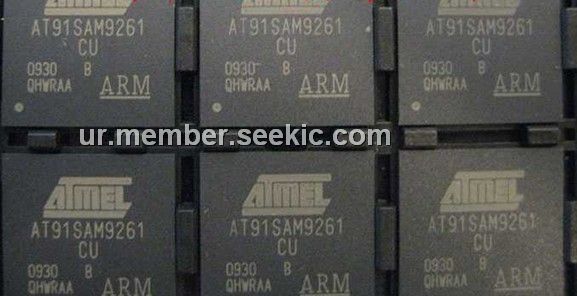

AT91SAM9261-CU

BGA, system-on-chip, ARM Thumb processor, External Bus Interface, 4.0V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.50~31.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $3.50~31.50

PartNumber:: AT91SAM9261-CU

Brand:: ATMEL Corporation - ATMEL | Pack: BGA | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. qi's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-11-30

From Other Seller

Part Number:AT91SAM9261-CU
US $3.50 - 31.50
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
LM64P101

US $240.00 - 300.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The AT91SAM9261-CU is a complete system-on-chip built around the ARM926EJ-S ARM Thumb processor with an extended DSP instruction set and Jazelle Java accelerator. It achieves 210 MIPS at 190 MHz. The AT91SAM9261-CU is an optimized host processor for applications with an LCD display. Its integrated LCD controller supports BW and up to 16M color, active and passive LCD displays. The 160 Kbyte integrated SRAM can be configured as a frame buffer minimizing the impact for LCD refresh on the overall processor performance. The External Bus Interface incorporates controllers for synchronous DRAM (SDRAM) and Static memories and features specific interface circuitry for CompactFlash and NAND Flash.

Parametrics

AT91SAM9261-CU absolute maximum ratings: (1)Operating Temperature (Industrial): -40 to +125℃; (2)Storage Temperature: -60 to +150℃; (3)Voltage on Input Pins with Respect to Ground: -0.3V to +4.0V; (4)Maximum Operating Voltage(VDDCORE and VDDBU): 1.5V; (5)Maximum Operating Voltage (VDDOSC, VDDPLL, VDDIOM and VDDIOP): 4.0V; (6)Total DC Output Current on all I/O lines: 350mA.

Features

AT91SAM9261-CU features: (1)Additional Embedded Memories; (2)External Bus Interface (EBI); (3)LCD Controller; (4)USB; (5)Bus Matrix; (6)Fully Featured System Controller (SYSC) for Efficient System Management, including; (7)Reset Controller (RSTC); (8)Shutdown Controller (SHDWC); (9)Clock Generator (CKGR); (10)Power Management Controller (PMC); (11)Advanced Interrupt Controller (AIC); (12)Debug Unit (DBGU); (13)Periodic Interval Timer (PIT); (14)Watchdog Timer (WDT); (15)Real-Time Timer (RTT); (16)Three 32-bit Parallel Input/Output Controllers (PIO) PIOA, PIOB and PIOC; (17)Nineteen Peripheral DMA (PDC) Channels; (18)MultiMedia Card Interface (MCI); (19)Two-wire Interface (TWI).
