Product Summary
The BDX66C is a P-N-P epitaxial base transistor in monolithic darlington circuit for audio output stages and general amplifier and switching applications.
Parametrics
BDX66C absolute maximum ratings: (1)Collector-Emitter Voltage:120V; (2)Collector-Base Voltage:120V; (3)Emitter-Base Voltage:5V; (4)Collector Current(d.c.):16A; (5)Collector current(peak value):20A; (6)Base Current:200mA; (7)Total Power Dissipation at TC = 25℃:150W; (8)Junction Temperature Range:200℃; (9)Storage Temperature Range:-65℃ to +200℃.
Features
BDX66C features: (1)Hermetic Metal TO3 Package; (2)Ideal for General Purpose Low Frequency Switching Applications ; (3)Screening Options Available.

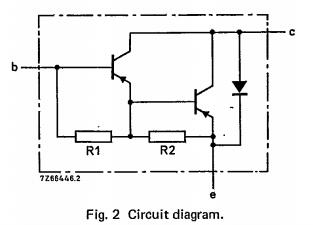

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 BDX66C |
Other |
|
Data Sheet |
Negotiable |
|
||||
