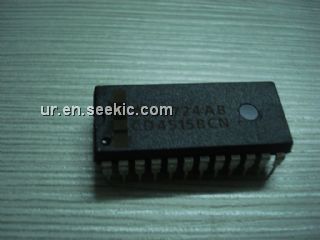

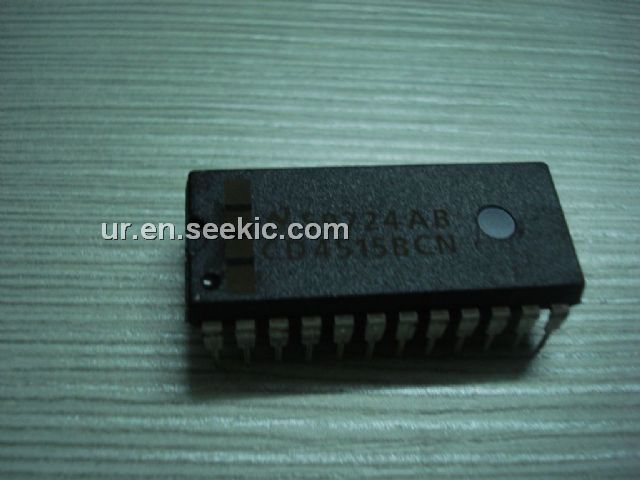

Product Summary
The CD4515BCN is a line decoder. It is primarily used in decoding applications where low power dissipation and/or high noise immunity is required. The input latches are R–S type flip-flops, which hold the last input data presented prior to the strobe transition from “1” to “0”. This input data is decoded and the corresponding output is activated. An output inhibit line is also available.
Parametrics
CD4515BCN absolute maximum ratings: (1)DC supply voltage: -0.5 to 18V; (2)input voltage: -0.5 VCC+0.5V; (3)Storage temperature range: -65 to 150℃; (4)power dissipation: 700mW; (5)lead temperature: 260℃.
Features
CD4515BCN features: (1)Wide supply voltage range: 3.0V to 15V; (2)High noise immunity: 0.45 VDD (typ.); (3)Low power TTL: fan out of 2 compatibility: driving 74L; (4)Low quiescent power dissipation: 0.025 µW/package @ 5.0 VDC; (5)Single supply operation; (6)Input impedance = 10 12Ω typically.

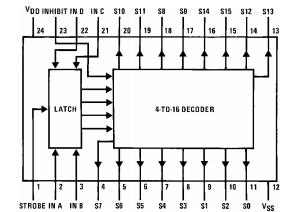

Diagrams
