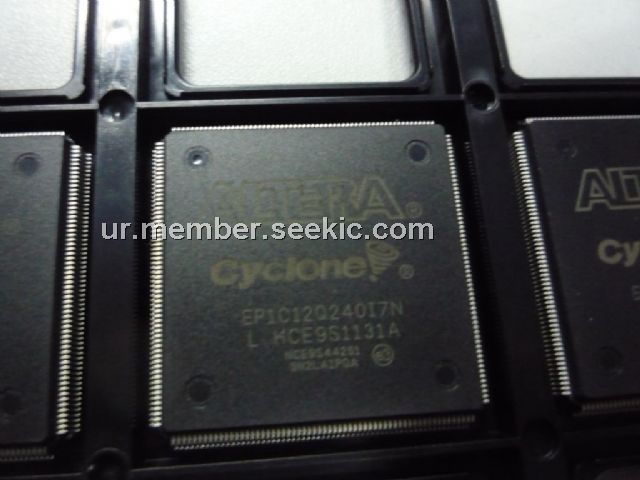

Product Summary

The EP1C12Q240I7 is an FPGA. The EP1C12Q240I7 is based on a 1.5-V, 0.13-μm, all-layer copper SRAM process, with densities up to 20,060 logic elements (LEs) and up to 288 Kbits of RAM. With features like phaselocked loops (PLLs) for clocking and a dedicated double data rate (DDR) interface to meet DDR SDRAM and fast cycle RAM (FCRAM) memory requirements, the EP1C12Q240I7 is a cost-effective solution for data-path applications. The EP1C12Q240I7 supports various I/O standards, including LVDS at data rates up to 311 megabits per second (Mbps) and 66-MHz, 32-bit peripheral component interconnect (PCI), for interfacing with and supporting ASSP and ASIC devices. Altera also offers new low-cost serial configuration devices to configure Cyclone devices.

Parametrics

EP1C12Q240I7 absolute maximum ratings: (1)VCCINT Supply voltage With respect to ground: –0.5 2.4 V; (2)VCCIO Supply voltage With respect to ground: –0.5 4.6 V; (3)VI DC input voltage: –0.5 4.6 V; (4)IOUT DC output current, per pin: –25 25 mA; (5)TSTG Storage temperature No bias: –65 150℃; (6)TAMB Ambient temperature Under bias: –65 135℃; (7)TJ Junction temperature BGA packages under bias: 135℃.

Features

EP1C12Q240I7 features: (1)2,910 to 20,060 LEs; (2)Up to 294,912 RAM bits (36,864 bytes); (3)Supports configuration through low-cost serial configuration device; (4)Support for LVTTL, LVCMOS, SSTL-2, and SSTL-3 I/O standards; (5)Support for 66-MHz, 32-bit PCI standard; (6)Low speed (311 Mbps) LVDS I/O support; (7)Up to two PLLs per device provide clock multiplication and phase; (8)shifting; (9)Up to eight global clock lines with six clock resources available per; (10)logic array block (LAB) row; (11)Support for external memory, including DDR SDRAM (133 MHz),; (12)FCRAM, and single data rate (SDR) SDRAM; (13)Support for multiple intellectual property (IP) cores, including; (14)Altera. MegaCore. functions and Altera Megafunctions Partners; (15)Program (AMPPSM) megafunctions.

Diagrams

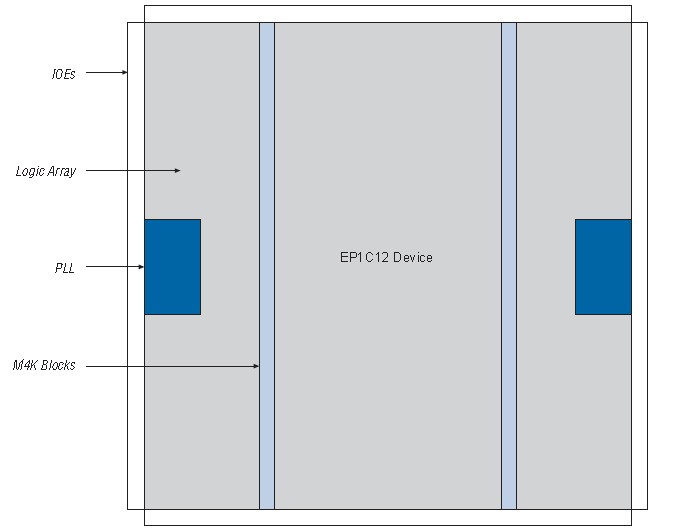

EP1C12Q240I7 pin connection
