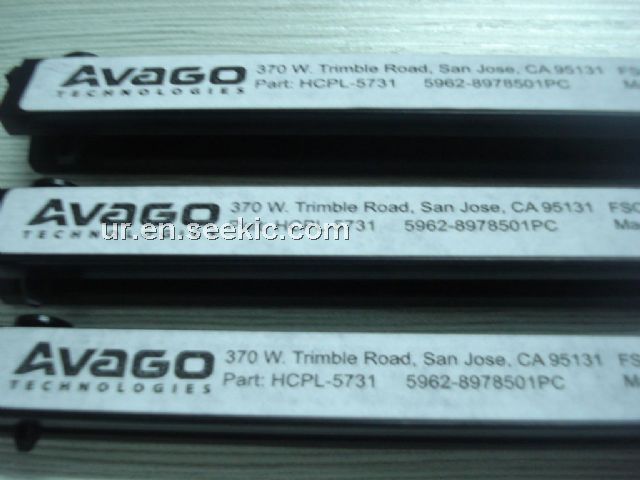

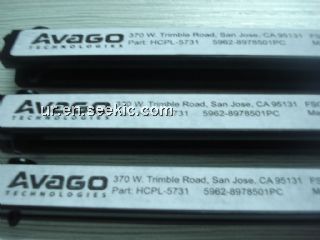

Product Summary

The HCPL-5731 is a hermetically sealed, low IF, wide VCC, high gain optocoupler. The applications of the HCPL-5731 include Military and aerospace, High reliability systems, Telephone ring detection, Microprocessor system interface, Transportation, medical, and life critical systems, Isolated input line receiver, EIA RS-232-C line receiver, Voltage level shifting, Isolated input line receiver, Isolated output line driver, Logic ground isolation, Harsh industrial environments, Current loop receiver, System test equipment isolation, Process control input/output isolation.

Parametrics

HCPL-5731 absolute maximum ratings: (1)storage temperature: -65 to 120℃; (2)operating temperature: -55 to 125℃; (3)case temperature: 170℃; (4)junction temperature: 175℃; (5)output current: 40mA; (6)output voltage: 20V; (7)supply voltage: 20V.

Features

HCPL-5731 features: (1)dual marked with device part number and DLA drawing number; (2)manufactured and tested on a MIL-PRF-38534 certified line; (3)QML-38534, class H and K; (4)Five hermetically sealed package configurations; (5)low input current requirement: 0.5mA; (6)performance guaranteed over full military temperature range: -55 to 125℃.

Diagrams

HCPL-5731 functional diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
HCPL-5731
HCPL-5731
Avago Technologies
Logic Output Optocouplers 2Ch 1500%CTR Hermetically sealed
Data Sheet
0-1: $59.54
1-25: $44.66
25-100: $41.68
HCPL-5731#100
HCPL-5731#100
Avago Technologies
Logic Output Optocouplers 2Ch 1500%CTR Hermetically sealed
Data Sheet
0-6: $59.84
6-25: $44.89
25-100: $41.89
HCPL-5731#300
HCPL-5731#300
Avago Technologies
Logic Output Optocouplers 2Ch 1500%CTR Hermetically sealed
Data Sheet
0-5: $60.74
5-25: $45.56
25-100: $42.52
HCPL-5731#200
HCPL-5731#200
Avago Technologies
Logic Output Optocouplers 2Ch 1500%CTR Hermetically sealed
Data Sheet
0-6: $59.84
6-25: $44.89
25-100: $41.89
