Product Summary

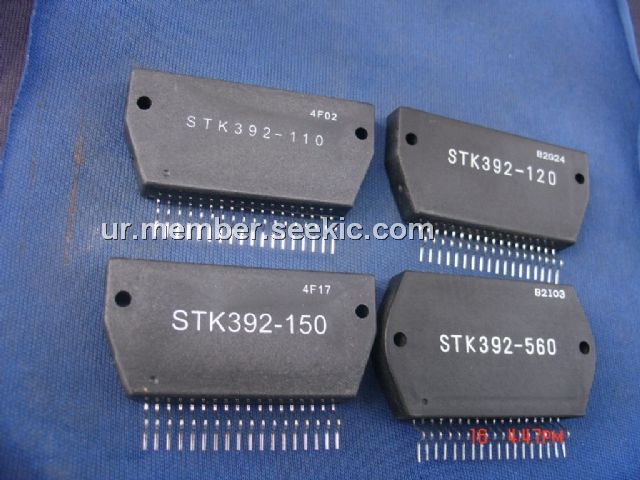

The STK392-560 is a 18 pin power amplification module.

Parametrics

STK392-560 absolute maximum ratings: (1)supply voltage, Vcc: ±44V; (2)collector current, Ic: ±5A; (3)Thermal resistance, θj.c: 2.1℃/W; (4)junction temperature, Tj: 150℃; (5)operating IC substrate temperature, Tc: 125℃; (6)storage temperature, Tstg: -30 to 125℃.

Features

STK392-560 features: converhence correction circuit 3 channels and output muting circuit.

Diagrams

STK392-560 diagram
