Product Summary
The HDMP-1032A transmitter and HDMP-1034A receiver are used together to build a high-speed data link for point-to-point communication. These silicon bipolar transmitter and receiver chips are housed in standard plastic 64 pin PQFP packages.The HDMP-1032A/1034A chipset was designed for ease of use and flexibility. The customer can tailor the use of this product through the configuration of the link based on specific system requirements and application needs. Typical applications range from back plane serialization and bus extension to cellular base stations.
Parametrics
HDMP1032A absolute maximum ratings: (1)Supply Voltage: -0.5 to 5.0V; (2)TTL Input Voltage:-0.7 to 5.5V; (3)H50 Input Voltage: 2.0- VCC V; (4)TTL Output Source Current: Max 13mA; (5)Storage Temperature:-65 to +150 °C; (6)Junction Temperature: 0 to +150°C; (7)Maximum Assembly Temperature (10 seconds maximum): Max +260°C.
Features
HDMP1032A features: (1)3.3 V supply, low power dissipation 660 mW Tx, 792 mW Rx; (2)On-chip encode/decode using Conditional Inversion Master Transition (CIMT) protocol; (3)1:N broadcast ready configurable receiver inputs allow multi-point data broadcast using a single transmitter; (4)Robust simplex mode; (5)Wide range serial rate 260-1400 MBaud (user selectable); (6)5 V tolerant TTL interface 16 or 17 Bits wide.

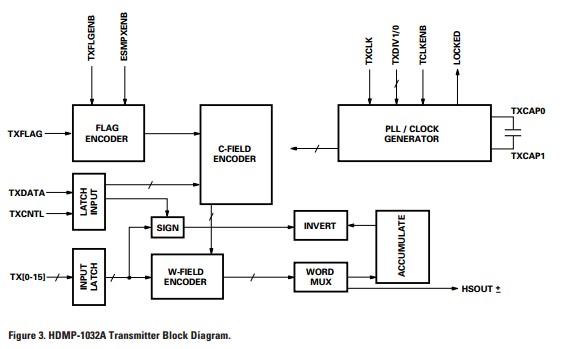

Diagrams
