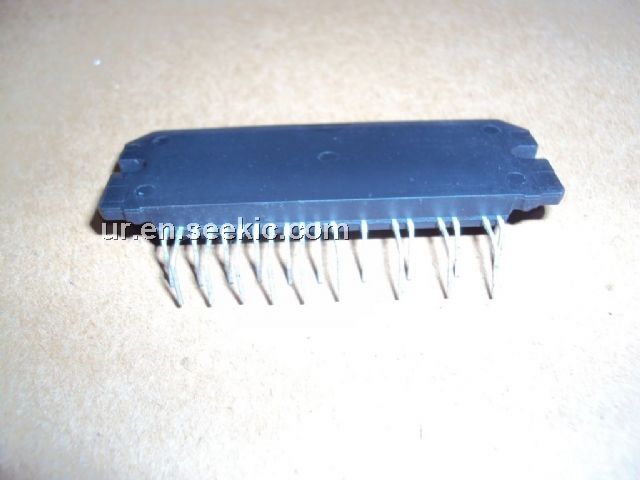

IRAMS10UP60B-2

integrated power hybrid IC, 10A, 600V, IRAMS10UP60B-2

Rated 5 Rating 5 | reviews | Write a review

Price:: US $7.00~7.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1000 :	7.00 / Piece

PartNumber:: IRAMS10UP60B-2

Brand:: International Rectifier - IR | Pack: | D/C: 11+

Availability:: Supply Ability: 1000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. qi's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-03-05

From Other Seller

Part Number:IRAMS10UP60B-2
US $7.00 - 7.00
Quantity:

piece

Product Summary

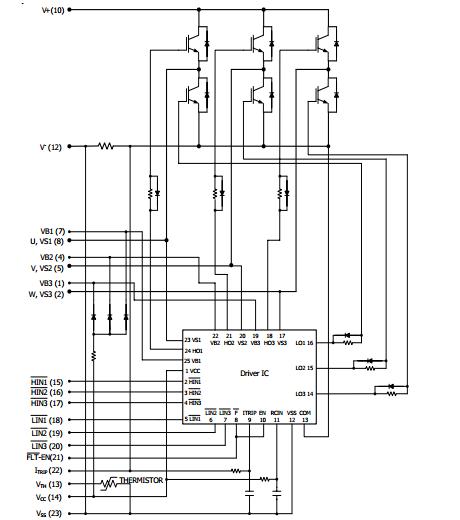

The IRAMS10UP60B-2 is an integrated power hybrid IC for appliance motor drive applications. The IRAMS10UP60B-2 is optimized for electronic motor control in appliance applications such as washing machines and refrigerators. Plug N Drive technology offers an extremely compact, high performance AC motor-driver in a single isolated package for a very simple design. An internal shunt is also included and offers easy current feedback and overcurrent monitor for precise and safe operation.

Parametrics

IRAMS10UP60B-2 absolute maximum ratings: (1)diode blocking voltage: 600V; (2)RMS phase current: 10A; (3)PWM carrier frequency: 20kHz; (4)isolation voltage: 2000V; (5)operating junction temperature range: -40 to 150℃; (6)mounting torque range: -0.5 to 1Nm.

Features

IRAMS10UP60B-2 features: (1)Internal Shunt Resistor; (2)Integrated Gate Drivers and Bootstrap Diodes; (3)Temperature Monitor; (4)Fully Isolated Package; (5)Low VCE(on) Non Punch Through IGBT Technology; (6)Undervoltage lockout for all channels; (7)Matched propagation delay for all channels; (8)Schmitt-triggered input logic; (9)Cross-conduction prevention logic; (10)Lower di/dt gate driver for better noise immunity.
