Product Summary

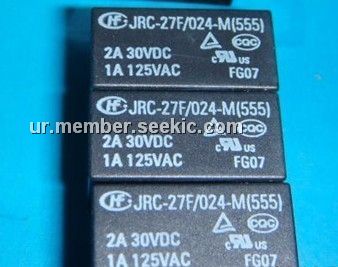

The JRC-27F/024-M is a 60W subminiature DIP relay.

Parametrics

JRC-27F/024-M general specifications: (1)Contact Arrangement:2C; (2)Initial Contact Resistance Max.:50mΩ; (3)Contact Material:AgNi, (Au Clad); (4)Contact Rating (Res. Load):2A, 30VDC, 1A, 125VAC; (5)Max. switching power:125VA/60W; (6)Max. switching voltage:120VDC/240VAC; (7)Max. switching current:2A; (8)Min. Applicable load:10mV, 10μA; (9)Mechanical life:1x108 OPS.

Features

JRC-27F/024-M features: (1)2 Form C contact; (2)High switching capacity 60W, 125VA; (3)Matching 16 pin IC socket; (4)Epoxy sealed for automatic-wave; (5)Soldering and cleaning.

Diagrams

JRC-27F/024-M wiring diagram
