Product Summary

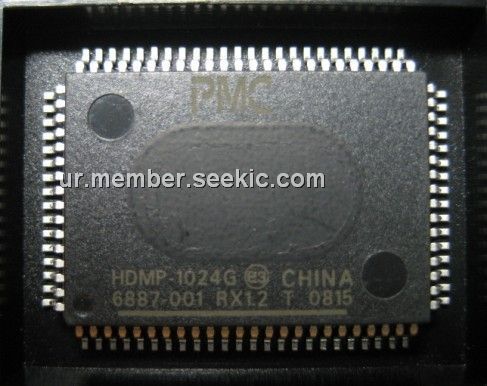

The HDMP-1022 transmitter and the HDMP-1024G receiver are used to build a high-speed data link for point-to-point communication. The monolithic silicon bipolar transmitter chip and receiver chip are each provided in a standard aluminum M-Quad 80 package. The HDMP-1024G chip set hides from the user all the complexity of encoding, multiplexing, clock extraction, demultiplexing and decoding. Unlike other links, the phaselocked-loop clock extraction circuit also transparently provides for frame synchronization–the user is not troubled with the periodic insertion of frame synchronization words.
Parametrics
HDMP-1024G absolute maximum ratings: (1)Supply Voltage: -0.5 to 7.0 V; (2)Input Voltage: -0.7 VCC + 0.5 V; (3)H50 Input Voltage: VCC - 2.0 to VCC + 0.5V; (4)TTL Output Source Current: +13 mA; (5)Storage Temperature: -40 to +130℃; (6)Junction Temperature: -40 to +130℃; (7)Maximum Assembly Temperature (for 10 seconds maximum): +260℃.
Features
HDMP-1024G features: (1)Transparent, Extended Ribbon Cable Replacement; (2)Implemented in a Low Cost Aluminum M-Quad 80 Package; (3)High-Speed Serial Rate 150-1500 MBaud; (4)Standard TTL Interface 16, 17, 20, or 21 Bits Wide; (5)Reliable Monolithic Silicon Bipolar Implementation; (6)On-Chip Phase-Locked Loops; (7)Transmit Clock Generation; (8)Receive Clock Extraction.

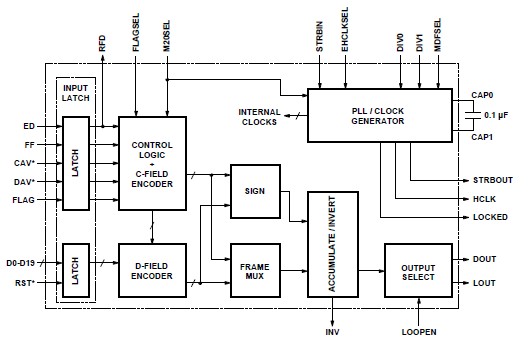

Diagrams
 |
