M48T59Y-70PC1

M48T59Y-70PC1, 64 Kbit, 8Kb x8 TIMEKEEPER SRAM, 20 mA, 1 W

Rated 5 Rating 5 | reviews | Write a review

Price:: US $5.50~5.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1000 :	5.50 / Piece

PartNumber:: M48T59Y-70PC1

Brand:: STMicroelectronics - ST | Pack: DIP | D/C: 97+

Availability:: Supply Ability: 1000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. qi's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-04-21

From Other Seller

Part Number:M48T59Y-70PC1
US $5.50 - 5.50
Quantity:

piece

Product Summary

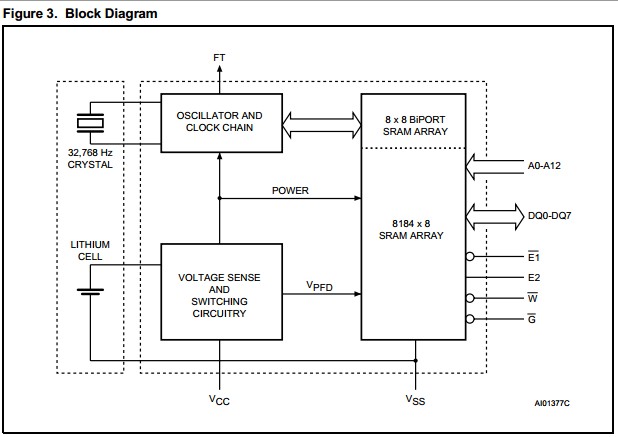

The M48T59Y-70PC1 is an 8K x8 non-volatile static RAM and real time clock. The monolithic chip is available in two special package to provide a highly integrated battery backed-up memory and real time clock solution.

Parametrics

M48T59Y-70PC1 absolute maximum ratings: (1)Ambient Operating Temperature: 0 to 70 °C; (2)Storage Temperature: –40 to 85°C; (3)Lead Solder Temperature for 10 seconds: 260 °C; (4)Input or Output Voltages: –0.3 to 7V; (5)Supply Voltage: –0.3 to 7 V; (6)Output Current: 20 mA; (7)Power Dissipation: 1 W.

Features

M48T59Y-70PC1 features: (1)INTEGRATED ULTRA LOW POWER SRAM, REAL TIME CLOCK, POWER-FAIL CONTROL CIRCUIT and BATTERY; (2)BCD CODED YEAR, MONTH, DAY, DATE, HOURS, MINUTES and SECONDS; (3)FREQUENCY TEST OUTPUT for REAL TIME CLOCK; (4)AUTOMATIC POWER-FAIL CHIP DESELECT andWRITE PROTECTION; (5)SELF-CONTAINED BATTERY and CRYSTAL in the CAPHAT DIP PACKAGE; (6)SOIC PACKAGE PROVIDES DIRECTCONNECTION for a SNAPHAT TOP which CONTAINS the BATTERY and CRYSTAL; (7)PIN and FUNCTION COMPATIBLE with JEDEC STANDARD 8K x 8 SRAMs.
