Product Summary

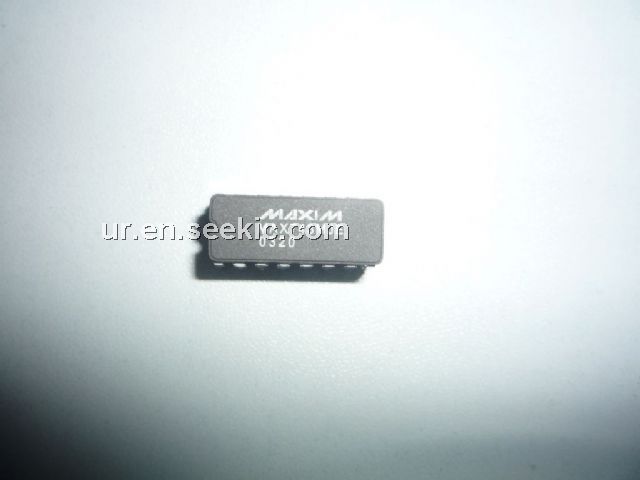

The MAX743MJE is a dual-output switch-mode regulator. Relying on simple two-terminal inductors rather than transformers, the MAX743MJE regulates both outputs independently to within ±4% over all conditions of line voltage, temperature, and load current. Its applications include DC-DC converter module replacement, distributed power systems, computer peripherals, portable instruments.
Parametrics
MAX743MJE absolute maximum ratings: (1)supply voltage: 7V; (2)output switch voltages: 17 to -0.3V; (3)output switch current: 2A; (4)operating temperature range: 0 to 70℃; (5)junction temperature: 150℃; (6)storage temperature range: -65 to 160℃; (7)lead temperature: 300℃.
Features
MAX743MJE features: (1)generates ±100mA or ±125mA; (2)specs guaranteed for in-circuit performance; (3)82% typ efficiency; (4)low-noise, current-mode feedback; (5)on-board current limiting; (6)thermal shutdown protection; (7)evaluation kit available.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX743MJE |
Maxim Integrated Products |
DC/DC Switching Regulators |
Data Sheet |
Negotiable |
|
||||||||||||
