Product Summary

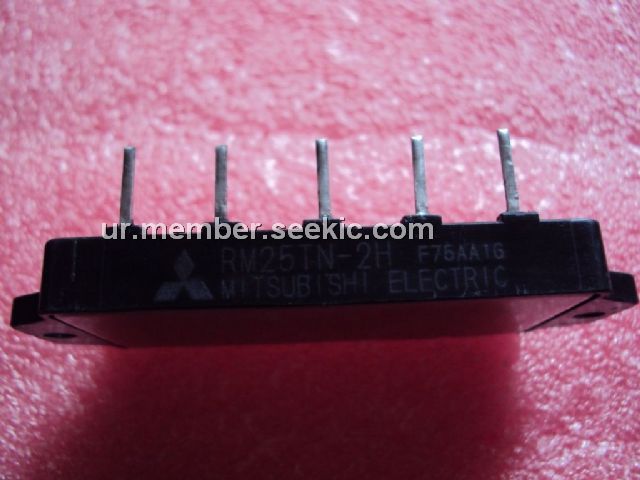

The RM25TN-2H is a three-Phase Diode Bridge Module designed for use in applications requiring rectification of three-phase AC lines into DC voltage. The RM25TN-2H consists of six diodes and the interconnect required to form a complete three-phase bridge circuit. Each diode is electrically insulated from the mounting base plate for easy mounting on a common heatsink with other components. The applications of the RM25TN-2H include Motor Control, Inverters and UPS.
Parametrics
RM25TN-2H absolute maximum ratings: (1)Repetitive Peak Reverse Voltage, VRRM: 1600 Volts; (2)Non-Repetitive Peak Reverse Voltage, VRSM: 1700 Volts; (3)Recommended AC Input Voltage, EA: 440 Volts; (4)DC Output Current, IO: 25 Amperes; (5)Surge (Non-Repetitive) Forward Current (One Half Cycle at 60Hz, Peak Value), IFSM: 400 Amperes; (6)I2t for Fusing (Value for One Cycle of Surge Current), I2t: 667 A2sec; (7)Junction Temperature, Tj: -40 to +125℃; (8)Storage Temperature, Tstg: -40 to +125℃; (9)Operating Frequency, f: 1000 Hz; (10)Maximum Mounting Torque M3.5 Mounting Screw: – 0.78 to 0.98 Nm; (11)Maximum Mounting Torque M3.5 Terminal Screw: – 0.78 to 0.98 Nm; (12)Isolation Voltage (Main Terminal to Baseplate, AC 1 min.), Viso: 2500 Vrms.
Features
RM25TN-2H features: (1)Isolated Mounting; (2)Metal Base Plate; (3)Low Thermal Impedance.

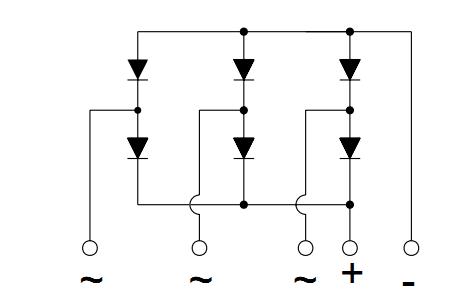

Diagrams
