Product Summary

The ULN2064B is the 1.5A quad darlington switch which is designed to interface logic to a wide variety of high current,highvoltageloads, the device each contains four NPN darlington switches delivering up to 1.5 A with a specifiedminimum breakdownof 50 V and a sustaining voltage of 35 V measured at 100mA. The ULN2064B contains integral suppression diodes for inductive loads have common emitters.

Parametrics

ULN2064B absolute maximum ratings: (1)Output Voltage: 50 V; (2)Output Sustaining Voltage: 35 V; (3)Output Current: 1.75 A; (4)Input Voltage: 15V; (5)Input Current: 25 mA; (6)Power Dissipation at Tpins =90℃: 4.3W; (7)Power Dissipation at Tamb =70℃: 1W; (8)Operating Ambient Temperature Range:– 20 to 85℃; (9)torage Temperature:– 55 to 150℃.

Features

ULN2064B features: (1)Output current to 1.5A each darlington; (2)Minimum breakdown 50V; (3)Sustaining voltage at least 35V; (4)Integral suppression diodes; (5)Isolated darlington pinout; (6)Versions compatible with all popularlogic families.

Diagrams

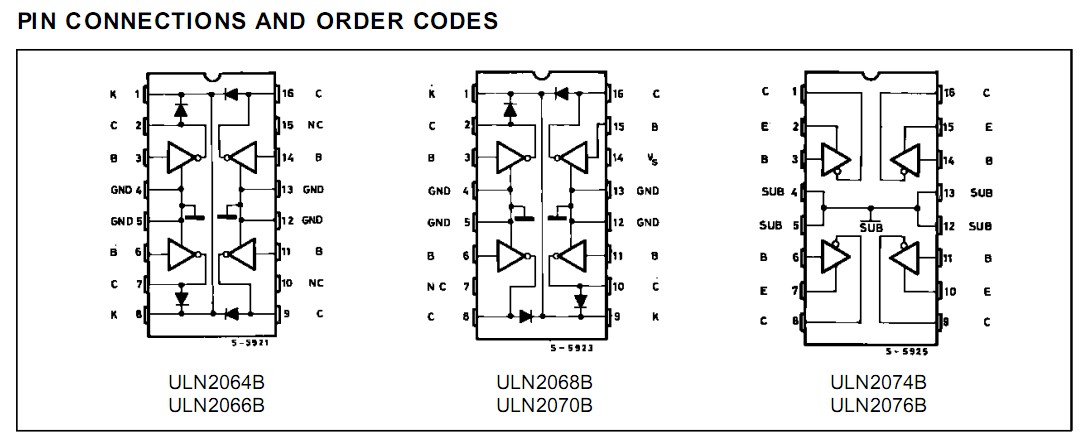

ULN2064B pin connections

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ULN2064B
ULN2064B
STMicroelectronics
Transistors Darlington 1.5 Amp Quad Switch
Data Sheet
0-1: $1.60
1-10: $1.30
10-100: $1.16
100-250: $1.03
