Product Summary

The SLA2403M is a High Voltage Full Bridge Drive IC.

Parametrics

SLA2403M absolute maximum ratings: (1)Power source voltage:500V; (2)Input voltage:15V; (3)Output voltage:500V; (4)Output current:7A or 15A; (5)Power dissipation:5W or 40W; (6)Storage temperature:-40℃ to +125℃; (7)Operation temperature:-40℃ to +125℃; (8)junction temperature:150℃.

Features

SLA2403M features: (1)One Package Full Bridge Driver Consisted of High Voltage IC and Power MOS FETs (4 pieces) ; (2)High Voltage Driver which accepts direct connection to the input signal line; (3)External components such as high voltage diodes and capacitors are not required.

Diagrams

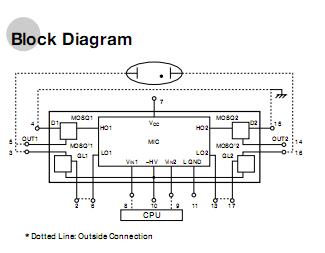

SLA2403M block diagram
