Product Summary

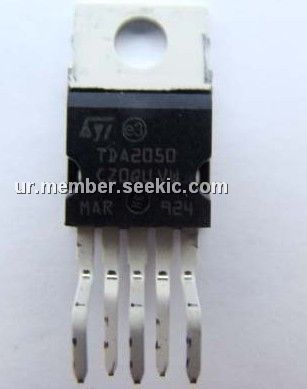

The TDA2050 is a monolithic integrated circuit in Pentawatt package, intended for use as an audio class AB audio amplifier. Thanks to its high power capability the TDA2050 is able to provide up to 35W true rms power into 4 ohm load @ THD = 10%, VS = ±18V, f = 1KHz and up to 32W into 8ohm load @THD = 10%, VS = ±22V, f = 1KHz. Moreover, the TDA2050 delivers typically 50W music power into 4 ohm load over 1 sec at VS= 22.5V, f = 1KHz.
Parametrics
TDA2050 absolute maximum ratings: (1)Supply Voltage:±25 V; (2)Input Voltage:±25 V; (3)Differential Input Voltage:±15 V; (4)Output Peak Current (internally limited):5 A; (5)Power Dissipation TCASE =75℃:25W; (6)Storage and Junction Temperature:-40℃ to 150℃.
Features
TDA2050 features: (1)high output power(50W music power IEC 268.3 rules); (2)high operating supply voltage (50V); (3)single or split supply operations; (4)very low distortion; (5)short circuit protection (out to GND); (6)thermal shutdown.
Diagrams
