Product Summary

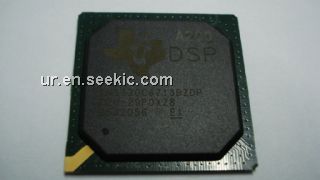

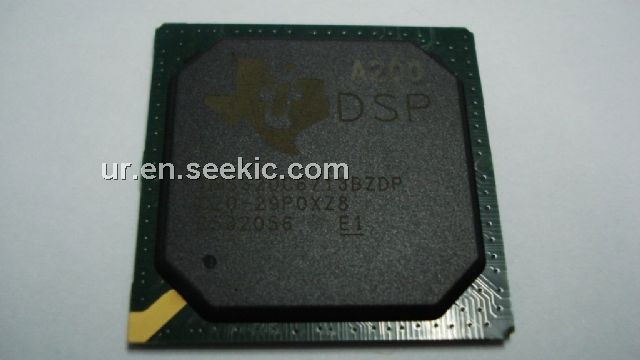

The TMS320C6713BZDPA200 compose the floating-point DSP generation in the TMS320C6000 DSP platform. The C6713B device is based on the high-performance, advanced very-long-instruction-word (VLIW) architecture developed by Texas Instruments (TI), making this DSP an excellent choice for multichannel and multifunction applications. TMS320C6713BZDPA200 device has two bootmodes: from the HPI or from external asynchronous ROM. For more detailed information, see the bootmode section of this data sheet.
Parametrics
TMS320C6713BZDPA200 absolute maximum ratings: (1)Supply voltage range:-0.3 V to 1.8 V; (2)Supply voltage range:-0.3 V to 4 V; (3)Input voltage range:-0.3 V to DVDD + 0.5 V; (4)Output voltage range:-0.3 V to DVDD + 0.5 V; (5)Operating case temperature ranges:0°C to 90°C; (6)Storage temperature range:-65°C to 150°C.
Features
TMS320C6713BZDPA200 features: (1)Highest-Performance Floating-Point Digital Signal Processor (DSP): TMS320C6713B; (2)Advanced Very Long Instruction Word; (3)Instruction Set Features; (4)Device Configuration; (5)32-Bit External Memory Interface (EMIF); (6)Enhanced Direct-Memory-Access (EDMA) Controller (16 Independent Channels); (7)16-Bit Host-Port Interface (HPI); (8)Two 32-Bit General-Purpose Timers.

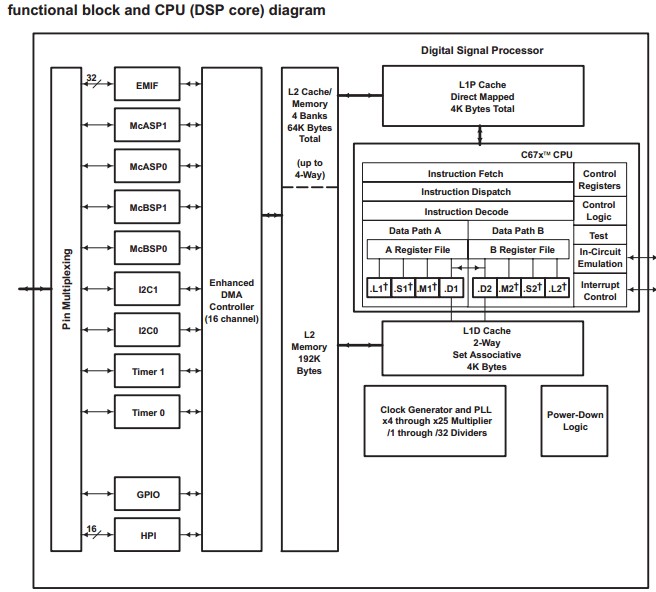

Diagrams
