Product Summary

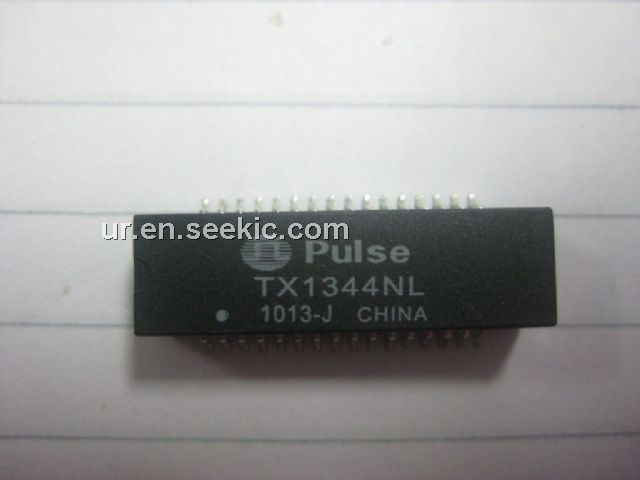

The TX1344NL is a transformer module. It has small package.

Features

TX1344NL features: (1)RoHS peak reflow temperature rating 245°C; (2)Industry’s smallest T1/E1 quad-port transformer module; (3)Crosstalk: -60 dB typically; (4)Operating temperature range: -40°C to +85°C; (5)UL recognized (some parts pending approval); (6)Isolation voltage: 1500 Vrms.

Diagrams

TX1344NL block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TX1344NL
TX1344NL
Pulse
Transformers Audio & Signal XFMR DUAL
Data Sheet
0-1: $5.72
1-10: $4.77
10-100: $4.28
100-500: $3.82
TX1344NLT
TX1344NLT
Pulse
Transformers Audio & Signal XFMR DUAL
Data Sheet
0-80: $4.77
80-100: $4.28
100-200: $4.28
200-500: $3.82
