Product Summary

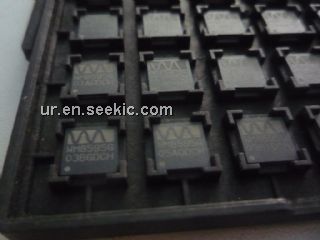

The WM8595G is a 24-bit, 192kHz stereo CODEC. Its applications include Surround Sound AV Processors and Hi-Fi systems, DVD-RW. It is a high performance, stereo audio codec with differential inputs and outputs. It is ideal for surround sound processing applications for home hi-fi, DVD-RW and other audio visual equipment.

Parametrics

WM8595G absolute maximum ratings: (1)Digital supply voltage: 3.63V; (2)analogue supply voltage: 7V; (3)voltage range digital inputs: DVDD+0.3V; (4)Voltage range analogue inputs: AVDD+0.3V; (5)Operating temperature range: -25 to 85℃; (6)storage temperature: -65 to 150℃.

Features

WM8595G features: (1)ADC digital gain from -21.5dB to -103dB in 0.5dB steps; (2)Programmable Limiter on ADC input; (3)Stereo DAC with differential analogue line outputs; (4)3-Wire SPI Compatible Control Interface; (5)Master or Slave Clocking Mode; (6)Programmable Audio Data Interface Modes

Diagrams

WM8595G block diagram
