Product Summary

The AD7545AKNZ is a buffered multiplying DAC. It features a WR pulse width of 100 ns, which allows interfacing to a much wider range of fast 8-bit and 16-bit microprocessors. It is loaded by a single 12-bit-wide word under the control of the CS and WR inputs; tying these control inputs low makes the input latches transparent, allowing unbuffered operation of the DAC.

Parametrics

AD7545AKNZ absolute maximum ratings: (1)VDD to DGND: -0.3 to 17V; (2)Digital input voltage to DGND: -0.3 to VDD+0.3V; (3)power dissipation: 450mW; (4)commercial: 0 to 70℃; (5)industrial grades: -25 to 85℃; (6)storage temperature: -65 to 150℃; (7)lead temperature: 300℃.

Features

AD7545AKNZ features: (1)Improved Version of AD7545; (2)Fast Interface Timing; (3)All Grades 12-Bit Accurate; (4)20-Lead DIP and Surface Mount Packages; (5)Low Cost.

Diagrams

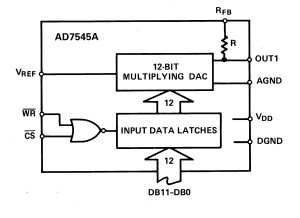

AD7545AKNZ diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AD7545AKNZ
AD7545AKNZ

IC DAC 12BIT MULTIPLYING 20-DIP
Data Sheet
0-1: $7.30
1-10: $6.63
10-100: $5.64
100-250: $5.14
250-500: $4.81
500-1000: $4.42
