Product Summary

The AD8197ASTZ is an HDMI/DVI switch with equalization. Its applications include Multiple input displays, Projectors, A/V receivers, Set-top boxes, Advanced television (HDTV) sets. Outputs can be set to a high impedance state to reduce the power dissipation and/or to allow the construction of larger arrays using the wire-OR technique.

Parametrics

AD8197ASTZ absolute maximum ratings: (1)AVCC to AVEE: 3.7V; (2)DVCC to DVEE: 3.7V; (3)VTTI: AVCC+0.6v; (4)AMUXVCC: 5.5V; (5)Internal power dissipation: 2.2W; (6)high speed differential input voltage: 2V; (7)low speed input voltage:DVCC+0.6V; (8)Storage temperature range: -65 to 125℃; (9)junction temperature: 150℃.

Features

AD8197ASTZ features: (1)4 inputs, 1 output HDMI™/DVI links; (2)Enables HDMI 1.3-compliant receiver; (3)Pin-to-pin compatible with the AD8191; (4)Two AD8197s support HDMI/DVI dual-link; (5)Standards compatible: HDMI receiver, HDCP, DVI; (6)100-lead, 14 mm × 14 mm LQFP, Pb-free package.

Diagrams

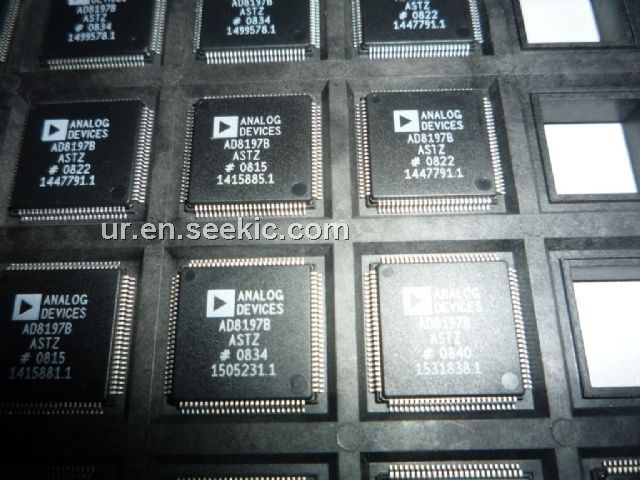

AD8197ASTZ diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AD8197ASTZ
AD8197ASTZ

IC SWITCH DVI/HDMI 4:1 100-LQFP
Data Sheet
0-1: $7.77
1-10: $7.06
10-100: $6.00
100-250: $5.47
250-500: $5.12
500-1000: $4.71
AD8197ASTZ-RL
AD8197ASTZ-RL

IC SWITCH DVI/HDMI 4:1 100-LQFP
Data Sheet
0-1000: $4.71
