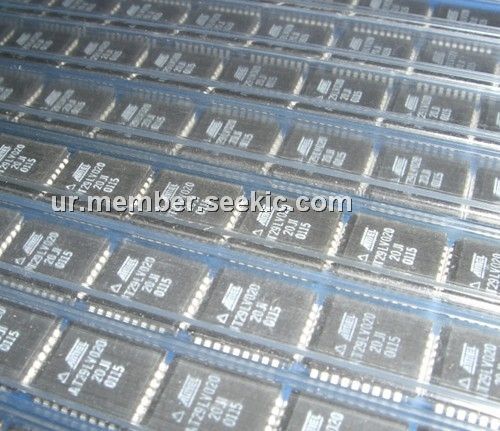

AT29LV020-20JI

2 Megabit, 3-volt, CMOS Flash Memory, Fast Read Access Time, Low Power Dissipation, PLCC32

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.15~15.80 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.15~15.80

PartNumber:: AT29LV020-20JI

Brand:: ATMEL Corporation - ATMEL | Pack: PLCC | D/C: 01+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. qi's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-11-30

From Other Seller

Part Number:AT29LV020-20JI
US $0.15 - 15.80
iphone5 data cable

US $4.00 - 5.00 / Piece
(0) Remove
RTL8102EL

US $1.00 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

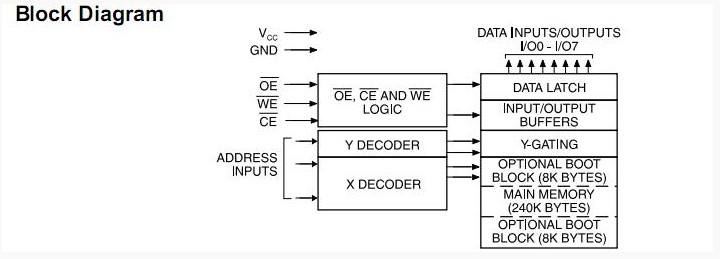

The AT29LV020-20JI is a 3-volt-only in-system Flash programmable and erasable read only memory (PEROM). Its 2 megabits of memory is organized as 262,144 bytes by 8 bits. Manufactured with Atmel’s advanced nonvolatile CMOS technology, the AT29LV020-20JI offers access times to 200 ns with power dissipation of just 54 mW over the commercial temperature range. When the device is deselected, the CMOS standby current is less than 20 μA. The AT29LV020-20JI endurance is such that any sector can typically be written to in excess of 10,000 times. Reprogramming the AT29LV020-20JI is performed on a sector basis; 256-bytes of data are loaded into the device and then simultaneously programmed.

Parametrics

AT29LV020-20JI absolute maximum ratings: (1)Temperature Under Bias:-55℃ to +125℃; (2)Storage Temperature:-65℃ to +150℃; (3)All Input Voltages(including NC Pins) with Respect to Ground:-0.6V to +6.25V; (4)All Output Voltages with Respect to Ground:-0.6V to VCC + 0.6V; (5)Voltage on A9(including NC Pins) with Respect to Ground: -0.6V to +13.5V.

Features

AT29LV020-20JI features: (1)Single Voltage, Range 3V to 3.6V Supply; (2)3-Volt-Only Read and Write Operation; (3)Software Protected Programming; (4)Fast Read Access Time:200 ns; (5)Low Power Dissipation:15 mA Active Current, 20μA CMOS Standby Current; (6)Sector Program Operation: Single Cycle Reprogram (Erase and Program), 1024 Sectors (256 bytes/sector), Internal Address and Data Latches for 256-Bytes; (7)Two 8 KB Boot Blocks with Lockout; (8)Fast Sector Program Cycle Time:20 ms; (9)Internal Program Control and Timer; (10)DATA Polling for End of Program Detection ; (11)Typical Endurance ＞ 10,000 Cycles; (12)CMOS and TTL Compatible Inputs and Outputs; (13)Commercial and Industrial Temperature Ranges.
