Product Summary
The BAR74 is a silicon switching diode. It is for high-speed switching.
Parametrics
BAR74 absolute maximum ratings: (1)Reverse voltage: 50V; (2)Peak reverse voltage: 50V; (3)Forward current: 250mA; (4)Surge forward current: 4.5A; (5)Total power dissipation: 370mW; (6)Junction temperature: 150°C; (7)Storage temperature range: – 65°C to + 150°C.
Features
BAR74 features: (1)For high-speed switching applications; (2)Qualified according AEC Q101.

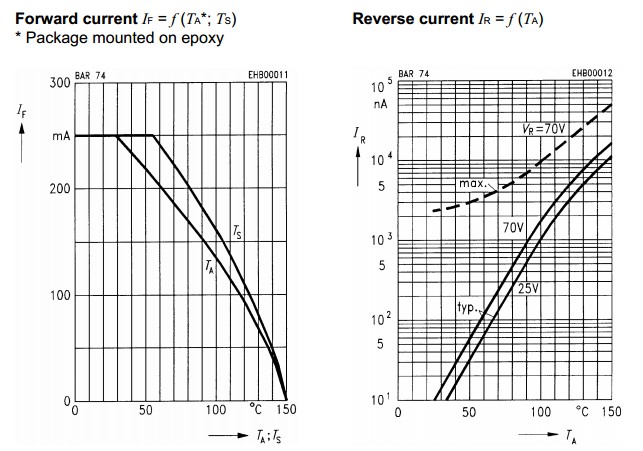

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 BAR74TC |
Diodes Inc. / Zetex |
Diodes (General Purpose, Power, Switching) - |
Data Sheet |
Negotiable |
|
||||
|
BAR74TA |
Diodes Inc. / Zetex |
Diodes (General Purpose, Power, Switching) - |
Data Sheet |
Negotiable |
|
||||
 |
BAR74 |
Other |
|
Data Sheet |
Negotiable |
|
||||
