Product Summary

The BTS442E2 is a smart highside power switch. Its applications include µC compatible power switch with diagnostic feedback for 12 V and 24 V DC grounded loads, All types of resistive, inductive and capacitve loads, Replaces electromechanical relays and discrete circuits.

Parametrics

BTS442E2 absolute maximum ratings: (1)Supply voltage: 63V; (2)Load dump protection: 80V; (3)Load current: self-limited; (4)operating temperature range: -40 to 150℃; (5)power dissipation: 167W; (6)inductive load switch-off energy dissipation: 2.1J; (7)Electrostatic discharge capability: 2kV.

Features

BTS442E2 features: (1)Overload protection; (2)Current limitation; (3)Short-circuit protection; (4)Thermal shutdown; (5)Overvoltage protection (including load dump); (6)Fast demagnetization of inductive loads.

Diagrams

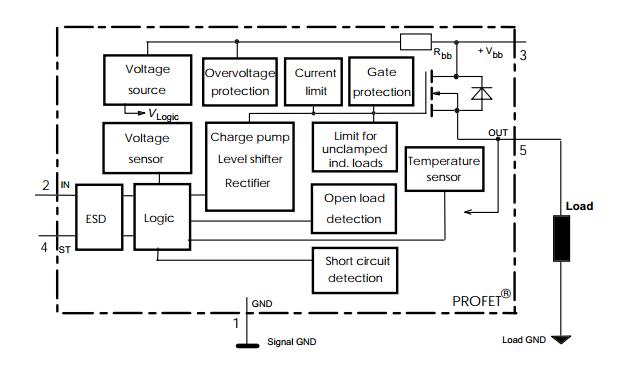

BTS442E2 diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
BTS442E2
BTS442E2
Infineon Technologies
Power Switch ICs - Power Distribution HIC-PROFET
Data Sheet
0-275: $2.90
275-500: $2.44
500-1000: $2.12
1000-2000: $2.04
BTS442E2 E3043
BTS442E2 E3043
Infineon Technologies
Power Switch ICs - Power Distribution Smart Highside Power Switch 63V 21A
Data Sheet
Negotiable
BTS442E2 E3062A
BTS442E2 E3062A
Infineon Technologies
Power Switch ICs - Power Distribution Smart High Side PROFET
Data Sheet
0-1000: $2.12
1000-2000: $2.04
BTS442E2NK
BTS442E2NK
Infineon Technologies
Power Switch ICs - Power Distribution PROFET SMART HI SIDE POWER SWITCH 63V
Data Sheet
Negotiable
BTS442E2E3062ANT
BTS442E2E3062ANT
Infineon Technologies
Power Switch ICs - Power Distribution PROFET SMART HI SIDE POWER SWITCH 63V
Data Sheet
Negotiable
