Product Summary

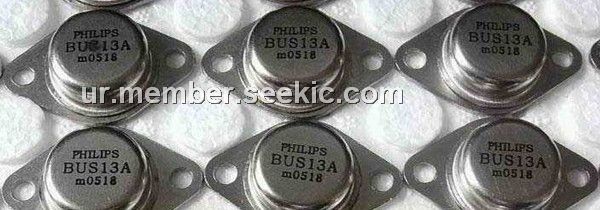

The BUS13A is a high-voltage, high-speed, glass-passivated npn power transistor in a TO-3 envelope. It is intended for use in converters, inverters, switching regulators, motor control systems etc.
Parametrics
BUS13A absolute maximum ratings: (1)Collector-Emitter Voltage (VBE = 0, peak value):1000V; (2)Collector-Emitter Voltage (Open Base):450V; (3)Collector Current:15A; (4)Collector Current (Peak Value); tp<2ms:30A; (5)Base Current (d.c.):6A; (6)Base Current (Peak Value); tp<2ms:9A; (7)Power Dissipation up to Tmb = 25℃:175W; (8)Storage Temperature:-65℃ to +200℃; (9)Junction Temperature:200℃.
Features
BUS13A features: (1)high-voltage; (2)high-speed; (3)glass-passivated.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 BUS13A |
Other |
|
Data Sheet |
Negotiable |
|
||||
