Product Summary

The H1102NL is a 10/100 base-t single port surface mount magnetic with various turns ratios.

Parametrics

H1102NL Specifications: (1)Insertion Loss(dB max) 100KHz-100MHz: -1.1; (2)Return Loss(dB typ): 30 MHz: -20; 60 MHz: -14; 80 MHz: -11.5; (3)Differential to Common Mode Rejection(dB typ): 30 MHz: -42; 50 MHz: -37; 100MHz: -33; (4)Crosstalk(dB TYP): 30 MHz: -45; 60 MHz: -40; 100 MHz: -35; (5)Hipot(Vrms min): 1500.

Features

H1102NL features: (1)RoHS-5 peak reflow temperature rating 235℃; (2)RoHS-6 peak reflow temperature rating 245℃; (3)Meets IEEE 802.3 specification; (4)Compact footprint for use in the most space-restrictive applications.

Diagrams

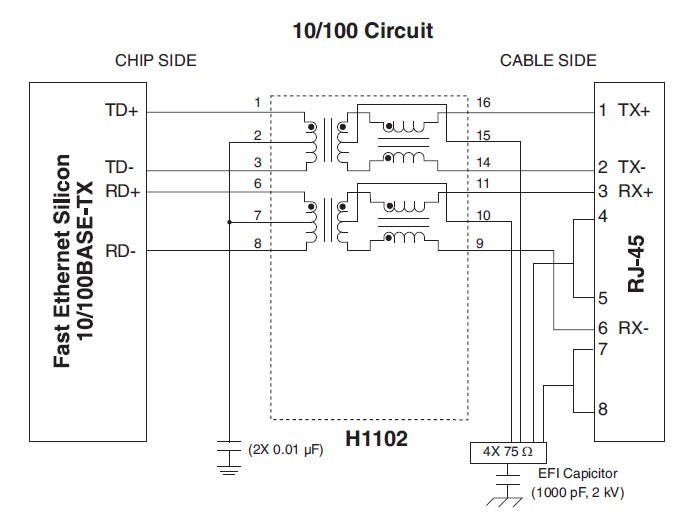

H1102NL circuit

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
H1102NL
H1102NL

Pulse

Transformers Audio & Signal SINGLE 1:1 SMD

Data Sheet

0-1: $2.67
1-10: $2.18
10-100: $1.64
100-500: $1.36
H1102NLT
H1102NLT

Pulse

Transformers Audio & Signal Single Port Transfor

Data Sheet

0-1: $2.67
1-10: $2.18
10-100: $1.64
100-500: $1.58
500-600: $1.58
