Product Summary
The CXB1444R is a cable equalizer with 2-system switching function. It compensates the attenuation resulting from cable transfer of smallamplitude differential NRZ signals.
Parametrics
CXB1444R absolute maximum ratings: (1)supply voltage: -0.3 to 4V; (2)storage temperature: -65 to 150℃.
Features
CXB1444R features: (1)Two sets of input ports comprising three pairs of differential data signals and one pair of differential clock signals; (2)50Ω termination pull-up resistors built into differential data and clock inputs; (3)Low differential data and clock input capacitance facilitates the design and manufacture of TDR standard compatible equipment; (4)Equalizer circuit that compensates cable attenuation improves the signal eye pattern; (5)Output 50Ω load drive, voltage amplitude 0.5Vp-p; (6)Single +3.3V power supply; (7)Low power consumption; (8)Lead-free 48-pin plastic LQFP package.

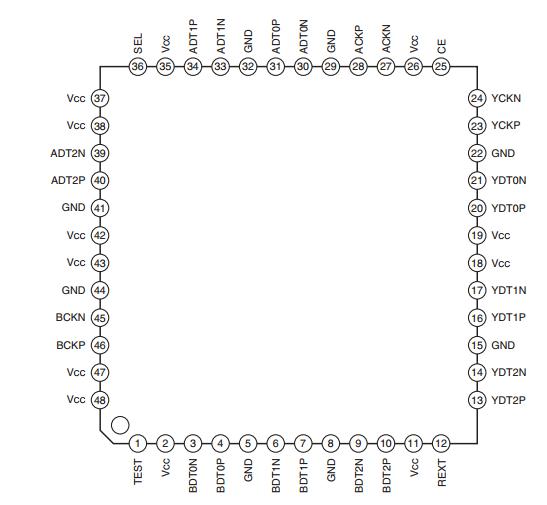

Diagrams
