Product Summary
The CY7C1071DV33 is a high performance CMOS Static RAM organized as 2,097,152 words by 16 bits. The input and output pins (I/O0through I/O15) are placed in a high impedance state.
Parametrics
CY7C1071DV33-12BAXI maximum ratings: (1)Storage Temperature:–65 °Cto +150 °C; (2)Ambient Temperature with Power Applied:–55 °C to +125°C; (3)Supply Voltage on VCC Relative to GND [2]:–0.3 V to +4.6 V; (4)DC Voltage Applied to Outputs in High Z State [2]:–0.5 V to VCC + 0.5 V; (5)DC Input Voltage[2]: –0.5 V to VCC + 0.5 V; (6)Current into Outputs (LOW): 20 mA; (7)Static Discharge Voltage: > 2001 V; (8)Latch up Current: > 200 mA.
Features
CY7C1071DV33-12BAXI features: (1)High speed:tAA = 12 ns ; (2)Low active power:ICC = 250 mA at 12 ns; (3)Low Complementary Metal Oxide Semiconductor (CMOS) standby power"ISB2= 50 mA; (4)Operating voltages of 3.3 ± 0.3 V; (5)2.0 V data retention ; (6)Automatic power down when deselected; (7)TTL compatible inputs and outputs; (8)Available in Pb-free 48-ball FBGA package.

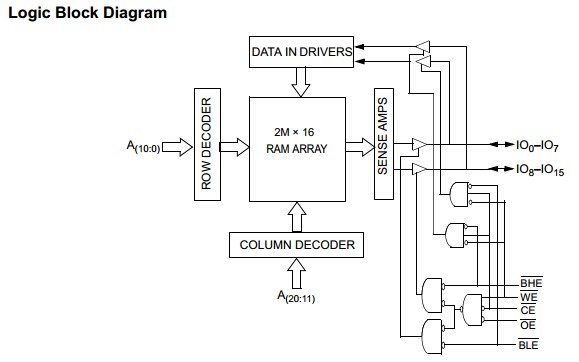

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 CY7C1071DV33-12BAXI |
Cypress Semiconductor |
SRAM 32-Mbit (2M x 16) SRAM |
Data Sheet |
|
|
||||||||
|
CY7C1071DV33-12BAXIT |
Cypress Semiconductor |
SRAM 32-Mbit (2M x 16) SRAM |
Data Sheet |
|
|
||||||||
