Product Summary

EPM7128AETC100-5 devices are high-density, highperformance devices based on Altera’s second-generation MAX architecture. Fabricated with advanced CMOS technology, the EPM7128AETC100-5 devices operate with a 3.3-V supply voltage and provide 600 to 10,000 usable gates, ISP, pin-to-pin delays as fast as 4.5 ns, and counter speeds of up to 227.3 MHz.

Parametrics

EPM7128AETC100-5 absolute maximum ratings: (1)Number of I/O Pins: 84; (2)Supply Voltage (DC):3.30 V; (3)Operating Temperature: 0.0 to 70.0 °C; (4)Case / Package: TQFP-100; (5)Lead-Free Status: Contains Lead; (6)Mounting Type:Surface Mount; (7)Packaging:Bulk; (8)RoHS: Non-Compliant.

Features

EPM7128AETC100-5 features: (1)High-performance 3.3-V EEPROM-based programmable logic ; (2)devices (PLDs) built on second-generation Multiple Array MatriX (MAX) architecture; (3)Enhanced ISP features; (4)Pin-compatible with the popular 5.0-V MAX 7000S devices; (5)High-density PLDs ranging from 600 to 10,000 usable gates; (6)Extended temperature range; (7)Supports hot-socketing in MAX 7000AE devices; (8)Programmable power-saving mode for 50% or greater power reduction in each macrocell; (9)Two global clock signals with optional inversion; (10)Enhanced interconnect resources for improved routability.

Diagrams

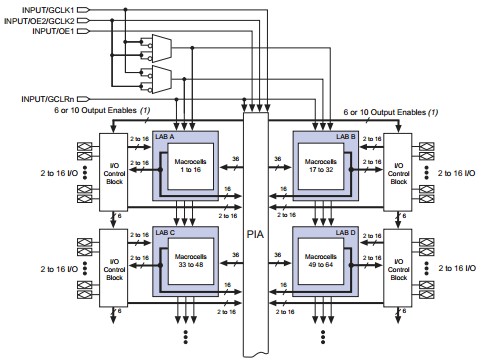

EPM7128AETC100-5 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
EPM7128AETC100-5
EPM7128AETC100-5

IC MAX 7000 CPLD 128 100-TQFP
Data Sheet
0-270: $37.50
EPM7128AETC100-5N
EPM7128AETC100-5N

IC MAX 7000 CPLD 128 100-TQFP
Data Sheet
0-270: $37.50
