Product Summary

The HI-8588PDT is a line receiver. It is available in a SO 8 pin package. The technology is analog/digital CMOS. The circuitry requires only a 5 volt supply. The comparator levels are just below the standard 6.5 volt minimum ARINC data threshold and just above the standard 2.5 volt maximum ARINC null threshold. Also if TESTA and TESTB are both taken high, the analog powers down and the digital outputs tri-state allowing wire-or possibilities.

Parametrics

HI-8588PDT absolute maximum ratings: (1)supply voltage: 7V; (2)ARINE input-pins voltage: ±29V; (3)power dissipation: 0.7W; (4)solder temperature: 275℃; (5)storage temperature: -65 to 150℃; (6)DC current per input pin: ±10mA.

Features

HI-8588PDT features: (1)Direct ARINC 429 line receiver interface in a small outline package; (2)Receiver input hystersis at least 2 volts; (3)Test inputs that bypass analog input and can power down and tri-state outputs; (4)Plastic and ceramic package options surface mount and DIP; (5)Mil processing available.

Diagrams

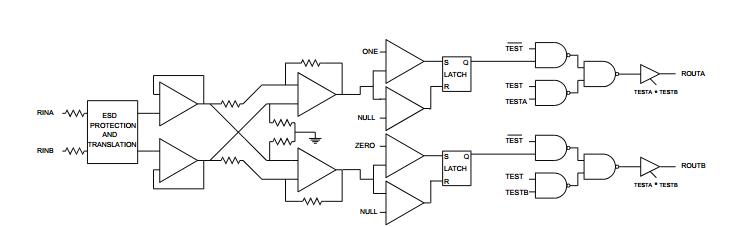

HI-8588PDT block diagram
