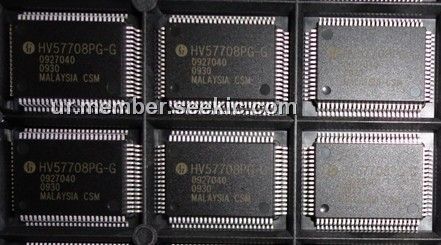

HV57708PG-G

32MHz, 64-Channel Serial to Parallel Converter, Push-Pull Outputs, QFP, 5.0V CMS Logic

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~23.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~23.50

PartNumber:: HV57708PG-G

Brand:: Supertex, Inc - Supertex | Pack: QFP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. qi's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-11-29

From Other Seller

Part Number:HV57708PG-G
US $1.00 - 23.50
HEF4093BT

US $0.15 - 1.20 / Piece
(0) Remove
RTL8102EL

US $1.00 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

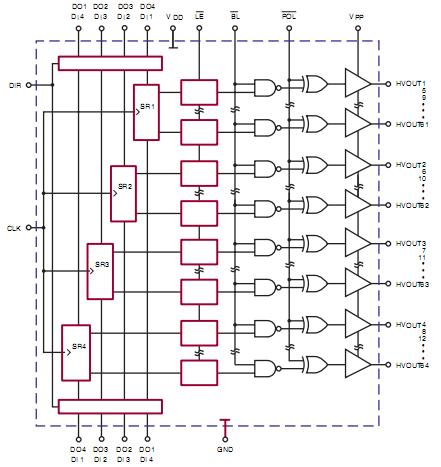

The HV57708PG-G is a low voltage serial to high voltage parallel converter with push-pull outputs. The device has been designed for use as a driver for EL displays. The HV57708PG-G can also be used in any application requiring multiple output high voltage current sourcing and sinking capability such as driving plasma panels, vacuum fluorescent displays, or large matrix LCD displays. The HV57708PG-G has 4 parallel 16-bit registers, permitting data rates 4x the speed of one (they are clocked together).

Parametrics

HV57708PG-G absolute maximum ratings: (1)Supply voltage, VDD:-0.5V to +7.5V; (2)Output voltage , VPP:-0.5V to +90V; (3)Logic input levels:-0.3V to VDD + 0.3V; (4)Ground current:1.5A; (5)Continuous total power dissipation:1200mW; (6)Operating temperature range:-40℃ to +85℃; (7)Storage temperature range:-65℃ to +150℃; (8)Lead temperature 1.6mm from case for 10 seconds:260℃.

Features

HV57708PG-G features: (1)HVCMOS technology; (2)5.0V CMS Logic; (3)Output voltage up to +80V; (4)Low power level shifting; (5)32MHz equivalent data rate; (6)Latched data outputs; (7)Foreward and reverse shifting options (DIR pin); (8)Diode to VPP allows efficient power recovery; (9)Outputs may be hot switched.
