INA118P

low power instrumentation amplifier, 18V, 10mA, DIP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $6.00~6.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1000 :	6.00 / Piece

PartNumber:: INA118P

Brand:: Burr-Brown Corporation - BB | Pack: DIP | D/C: 08+

Availability:: Supply Ability: 1000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. qi's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-03-06

From Other Seller

Part Number:INA118P
US $6.00 - 6.00
Quantity:

piece

Product Summary

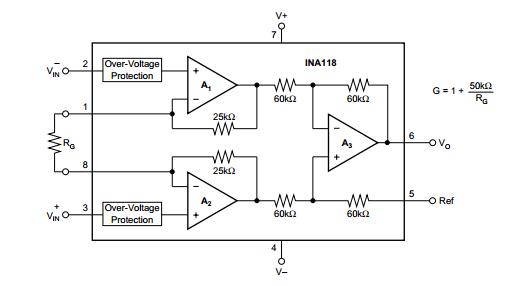

The INA118P is a low power instrumentation amplifier. Its versatile 3-op amp design and small size make it ideal for a wide range of applications. Current-feedback input circuitry provides wide bandwidth even at high gain (70kHz at G = 100). The applications of the INA118P include bridge amplifier, thermocouple amplifier, RTD sensor amplifier, medical instrumentation, data acquisition.

Parametrics

INA118P absolute maximum ratings: (1)supply voltage: ±18V; (2)analog input voltage range: ±40V; (3)output short-circuit: continuous; (4)operating temperature: -40 to 125℃; (5)storage temperature: -40 to 125℃; (6)junction temperature: 150℃; (7)lead temperature: 300℃.

Features

INA118P features: (1)low offset voltage: 50μV max; (2)low drift: 0.5μV/℃ max; (3)high CMR: 110dB min; (4)low quiescent current: 350μA; (5)8-pin plastic dip; (6)inputs protected to ±40V.
