Product Summary

The L7824CT is a three-terminal positive regulator. It is available in TO-220, TO-220FP, TO-3, D2PAK and DPAK packages and several fixed output voltages, making the L7824CT useful in a wide range of applications. The L7824CT can provide local on-card regulation, eliminating the distribution problems associated with single point regulation. Each type employs internal current limiting, thermal shut-down and safe area protection, making it essentially indestructible.

Parametrics

L7824CT absolute maximum ratings: (1)DC input voltage:40V; (2)Output current:Internally limited; (3)Power dissipation:Internally limited; (4)Storage temperature range:-65℃ to 150℃; (5)Operating junction temperature range:0℃ to 150℃.

Features

L7824CT features: (1)Output current to 1.5 A; (2)Output voltages of 5; 6; 8; 8.5; 9; 12; 15; 18; 24 V; (3)Thermal overload protection; (4)Short circuit protection; (5)Output transition SOA protection.

Diagrams

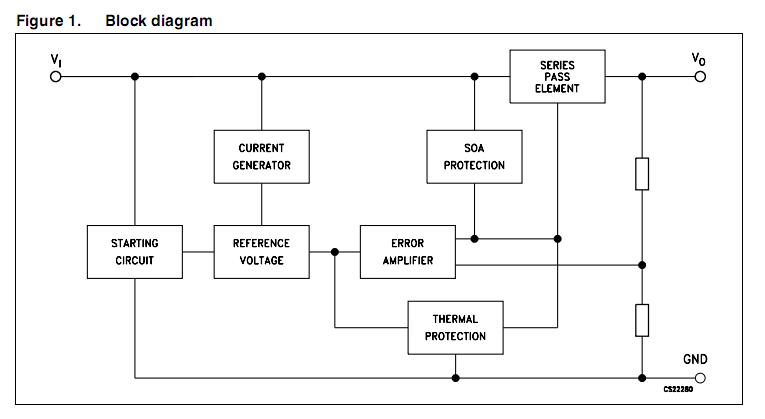

L7824CT block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
L7824CT
L7824CT
STMicroelectronics
Linear Regulators - Standard 24V 1.5A Positive
Data Sheet
0-1: $2.01
1-10: $1.63
10-100: $1.47
100-250: $1.33
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
L7820ACV
L7820ACV
STMicroelectronics
Linear Regulators - Standard 20V 1.0A Positive
Data Sheet
Negotiable
L7824
L7824
Other

Data Sheet
Negotiable
L7824ABD2T
L7824ABD2T
STMicroelectronics
Linear Regulators - Standard 24V 1.0A Positive
Data Sheet
Negotiable
L7824ABP
L7824ABP
STMicroelectronics
Linear Regulators - Standard 24V 1.0A Positive
Data Sheet
Negotiable
L7824ACV
L7824ACV
STMicroelectronics
Linear Regulators - Standard 24V 1.5A Positive
Data Sheet
0-1: $0.38
1-10: $0.33
10-100: $0.26
100-250: $0.22
L7824CD2T-TR
L7824CD2T-TR
STMicroelectronics
Linear Regulators - Standard +24 V out 1.5 A out
Data Sheet
0-1: $0.42
1-10: $0.37
10-100: $0.29
100-250: $0.25
