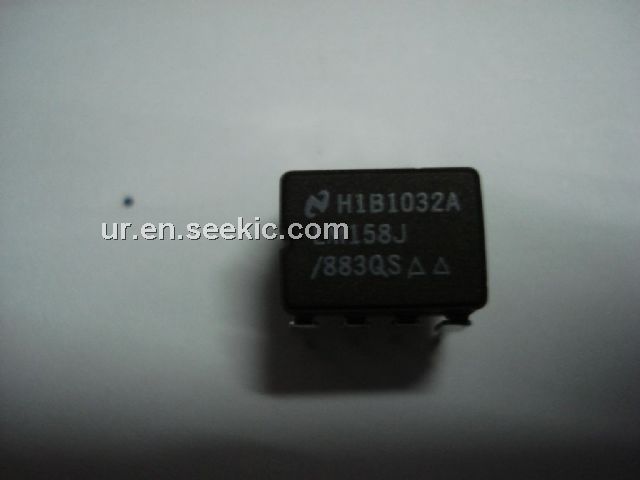

LM158J

LM158J, Low Power, 250V, -0.3V to +32V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.00~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1000 :	2.00 / Piece

PartNumber:: LM158J

Brand:: National Semiconductor - NS | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 1000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. qi's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-09

From Other Seller

Part Number:LM158J
US $2.00 - 2.00
LM158J

US $7.40 - 8.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The LM158J series consists of two independent, high gain, internally frequency compensated operational amplifiers which were designed specifically to operate from a single power supply over a wide range of voltages. Operation from split power supplies is also possible and the low power supply current drain is independent of the magnitude of the power supply voltage. LM158J Application areas include transducer amplifiers, dc gain blocks and all the conventional op amp circuits which now can be more easily implemented in single power supply system.

Parametrics

LM158J absolute maximum ratings: (1)Differential Input Voltage: 32V; (2)Input Voltage:-0.3V to +32V; (3)Differential Input Voltage: 32V; (4)Storage Temperature Range:-65°C to +150°C; (5)ESD Tolerance:250V.

Features

LM158J features: (1)Available in 8-Bump micro SMD chip sized package; (2)Internally frequency compensated for unity gain; (3)Large dc voltage gain: 100 dB; (4)Wide bandwidth (unity gain): 1 MHz(temperature compensated); (5)Very low supply current drain (500 μA) — essentially independent of supply voltage; (6)Low input offset voltage: 2 mV; (7)Input common-mode voltage range includes ground; (8)Differential input voltage range equal to the power supply voltage; (9)Large output voltage swing.
