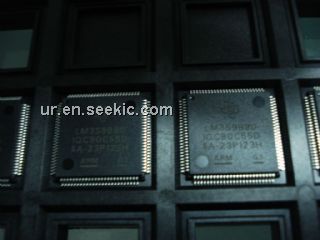

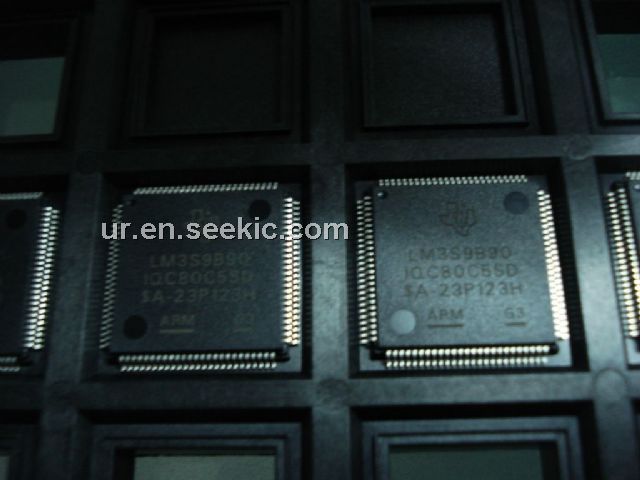

LM3S9B90-IQC80-C5

LM3S9B90-IQC80-C5, microcontroller, 300 mV, 25 mA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $12.00~12.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1000 :	12.00 / Piece

PartNumber:: LM3S9B90-IQC80-C5

Brand:: Texas Instruments - TI | Pack: QFP | D/C: 11+

Availability:: Supply Ability: 1000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. qi's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-09

From Other Seller

Part Number:LM3S9B90-IQC80-C5
US $12.00 - 12.00
Quantity:

piece

Product Summary

The LM3S9B90-IQC80-C5 microcontroller is targeted for industrial applications, including remote monitoring, electronic point-of-sale machines, test and measurement equipment, network appliances and switches, factory automation, HVAC and building control, gaming equipment, motion control, medical instrumentation, and fire and security. For applications requiring extreme conservation of power, the LM3S9B90-IQC80-C5 microcontroller features a battery-backed Hibernation module to efficiently power down the LM3S9B90 to a low-power state during extended periods of inactivity. With a power-up/power-down sequencer, a continuous timecounter (RTC), a pair of match registers, an APB interface to the system bus, and dedicated non-volatile memory, the Hibernation module positions the LM3S9B90 microcontroller perfectly for battery applications.

Parametrics

LM3S9B90-IQC80-C5 absolute maximum ratings: (1)I/O supply voltage (VDD): 0 to 4V; (2)Analog supply voltage (VDDA): 0 to 4V; (3)Battery supply voltage:0 to 4V; (4)Input voltage: -0.3 to 5.5 V; (5)Input voltage for a GPIO configured as an analog input: 0.3 to VDD + 0.3 V; (6)Maximum current per output pins: 25 mA; (7)Maximum input voltage on a non-power pin when the microcontroller is unpowered: 300 mV.

Features

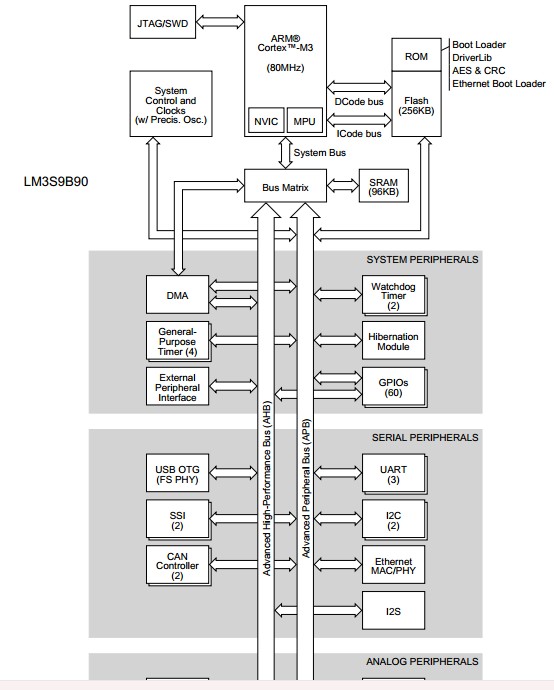

LM3S9B90-IQC80-C5 features: (1)ARM Cortex-M3 Processor Core; (2)High Performance: 80-MHz operation; 100 DMIPS performance; (3)256 KB single-cycle Flash memory; (4)96 KB single-cycle SRAM; (5)External Peripheral Interface (EPI); (6)Advanced Communication Interfaces: UART, SSI, I2C, I2S, CAN, Ethernet MAC and PHY, USB; (7)System Integration: general-purpose timers, watchdog timers, DMA, general-purpose I/Os; (8)Analog support: analog and digital comparators, Analog-to-Digital Converters (ADC), on-chip voltage regulator; (9)Industrial (-40°C to 85°C) temperature range.
