Product Summary

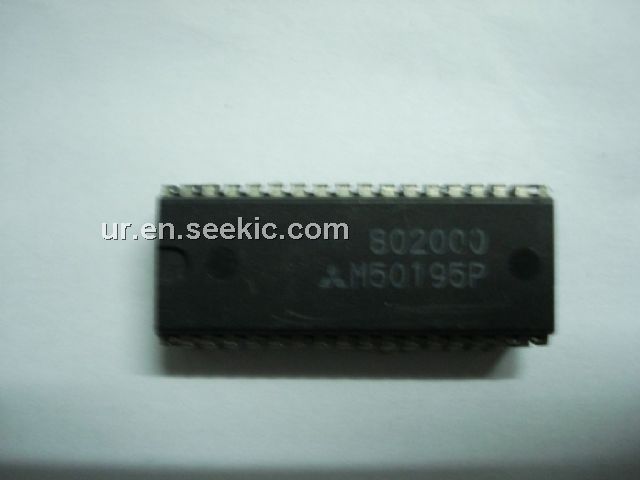

The M50195P is a digital ECHO IC fabricated with silicon-gate CMOS technology. The M50195P converts an input analog signal to a digital signal and writes it in a memory IC. After a delay it reads out the digital signal from the memory IC and then converts to an analog signal again.
Parametrics
M50195P absolute maximum ratings: (1)supply voltage: 7V; (2)circuit current: 70mA; (3)power dissipation: 1100mW; (4)operating temperature: -20 to +75°C; (5)storage temperature: -40 to +125°C.
Features
M50195P features: (1)low noise(-90dBV typ); (2)low distortion(0.5% typ); (3)3 mode delay time(100, 150, 200msec).

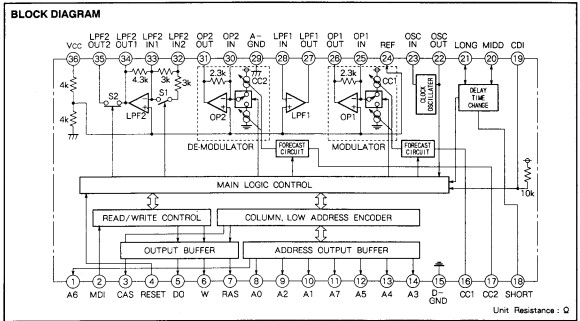

Diagrams
