Product Summary
The MAX3030EEUE family of quad RS-422 transmitters send digital data transmission signals over twisted-pair balanced lines in accordance with TIA/EIA-422-B and ITU-T V.11 standards. All transmitter outputs are protected to ±15kV using the Human Body Model. The MAX3030EEUE are available with either a 2Mbps or 20Mbps guaranteed baud rate. The 2Mbps baud rate transmitters feature slew-rate-limiting to minimize EMI and reduce reflections caused by improperly terminated cables. The MAX3030EEUE are low-power, ESD-protected, pin-compatible upgrades to the industry-standard 26LS31 and SN75174.
Parametrics
MAX3030EEUE absolute maximum ratings: (1)VCC: +6V; (2)Driver Output Current per Pin: ±150mA; (3)Junction Temperature: +150°C; (4)Storage Temperature Range: -65°C to +160°C; (5)Lead Temperature (soldering, 10s): +300°C.
Features
MAX3030EEUE features: (1)Meet TIA/EIA-422-B (RS-422) and ITU-T V.11 Recommendation; (2)±15kV ESD Protection on Tx Outputs; (3)Hot-Swap Functionality; (4)Guaranteed 20Mbps Data Rate (MAX3030E,MAX3032E); (5)Slew-Rate-Controlled 2Mbps Data Rate (MAX3031E, MAX3033E); (6)Available in 16-Pin TSSOP and Narrow SO Packages; (7)Low-Power Design (<330μW, VCC = 3.3V Static) ; (8)+3.3V Operation; (9)Industry-Standard Pinout; (10)Thermal Shutdown.

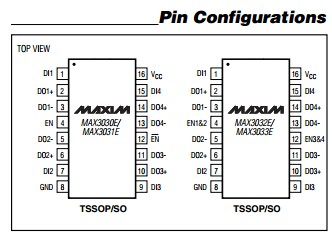

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

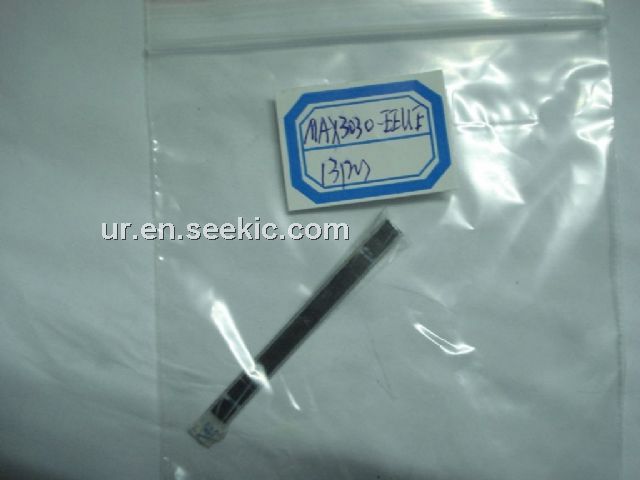

 MAX3030EEUE |
Maxim Integrated Products |
RS-422 Interface IC |
Data Sheet |
Negotiable |
|
||||||||||||
 |
MAX3030EEUE+ |
Maxim Integrated Products |
RS-422 Interface IC 3.3V Quad RS-422 ESD-Protected Trx |
Data Sheet |
|
|
||||||||||||
|
MAX3030EEUE-T |
Maxim Integrated Products |
RS-422 Interface IC |
Data Sheet |
Negotiable |
|
||||||||||||
|
MAX3030EEUE+T |
Maxim Integrated Products |
RS-422 Interface IC 3.3V Quad RS-422 ESD-Protected Trx |
Data Sheet |
|
|
||||||||||||
