Product Summary
The MC7805BT is a three-terminal positive fixed voltage regulator. It is a monolithic integrated circuit designed as fixed voltage regulators for a wide variety of applications including local, card regulation. These regulators employ internal current limiting, thermal shutdown, and safe area compensation.
Parametrics
MC7805BT absolute maximum ratings: (1)Input voltage: 35V; (2)Power dissipation: internally limited; (3)thermal resistance: 65℃/W; (4)Thermal resistance, junction-to-case: 5℃/W; (5)Storage junction temperature: -65 to 150℃; (6)operating junction temperature: 150℃.
Features
MC7805BT features: (1)Output Current in Excess of 1.0 A; (2)No External Components Required; (3)Internal Thermal Overload Protection; (4)Internal Short Circuit Current Limiting; (5)Output Transistor Safe Area Compensation; (6)Output Voltage Offered in 2% and 4% Tolerance.

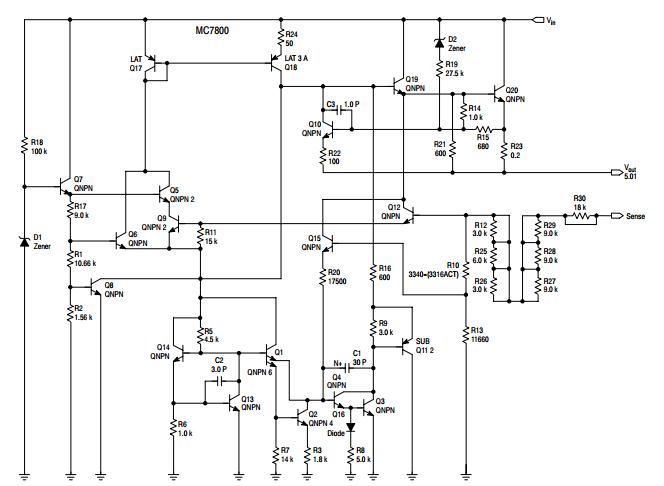

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MC7805BT |
ON Semiconductor |
Linear Regulators - Standard 5V 1A Postive |
Data Sheet |
Negotiable |
|
||||||||||||
|
MC7805BTG |
ON Semiconductor |
Linear Regulators - Standard 5V 1A Postive |
Data Sheet |
|
|
||||||||||||
