Product Summary

The MS3106B18-9S is a circular connector. The MS3106B18-9S has re-introduced the widely used MS A&B product line with improved features. For corrosion protection we have changed the shell finish to an environmentally safe, zinc alloy plating. The plating of the MS3106B18-9S is a high quality finish and uniform in color. The contacts, which are preloaded in the insulator, have been redesigned such that the solder cups remain in proper orientation and will not rotate during wiring termination. The contacts of the MS3106B18-9S are also machined for strength and durability and plated with silver. The Cannon MS A&B design meets the performance requirements of the MIL-C-5015. The product is available in all the popular sizes and configurations in Class A (solid end bell) and Class B (split end bell versions).

Parametrics

MS3106B18-9S absolute maximum ratings: (1)Temperature Range: –55℃ to 125℃ (-67°F to 257°F); (2)Current Rating: 13 A to 150 A; (3)Durability: 500 mating cycles min; (4)Wire Accommodation: 0 to 20 AWG; (5)No. of Contacts: 2 to 48; (6)Termination: Solder.

Features

MS3106B18-9S faetures: (1)High strength aluminum alloy connector; (2)High strength plastic insulators; (3)Environmentally safe shell finishes; (4)Protected against corrosion; (5)High quality plating finish; (6)Threaded coupling; (7)Product is tooled and available in 50 insert patterns; (8)Machined contacts; (9)Low cost.

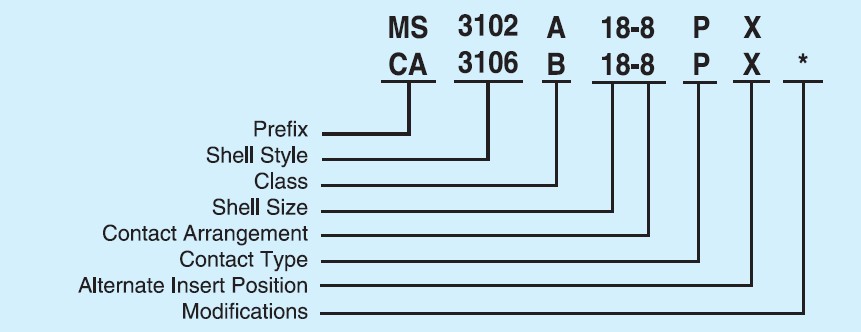

Diagrams

MS3106B18-9S Circular
