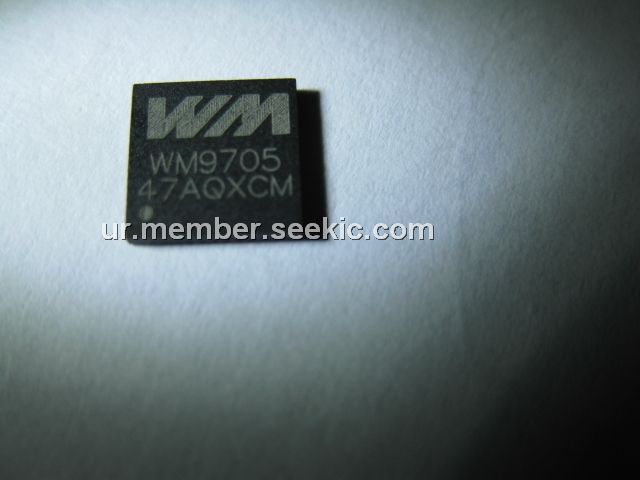

WM9705

high-quality stereo audio codec, QFN48, -0.3V to +7V, Multiple channel input mixer, Multiple channel input mixer

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.65~3.90 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.65~3.90

PartNumber:: WM9705

Brand:: Wolfson Microelectronics plc - Wolfson | Pack: QFN | D/C: 06+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. qi's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-11-18

From Other Seller

Part Number:WM9705
US $0.65 - 3.90
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
AT24C02BN-SH-T

US $0.08 - 0.15 / Piece
(0) Remove
Quantity:

piece

Product Summary

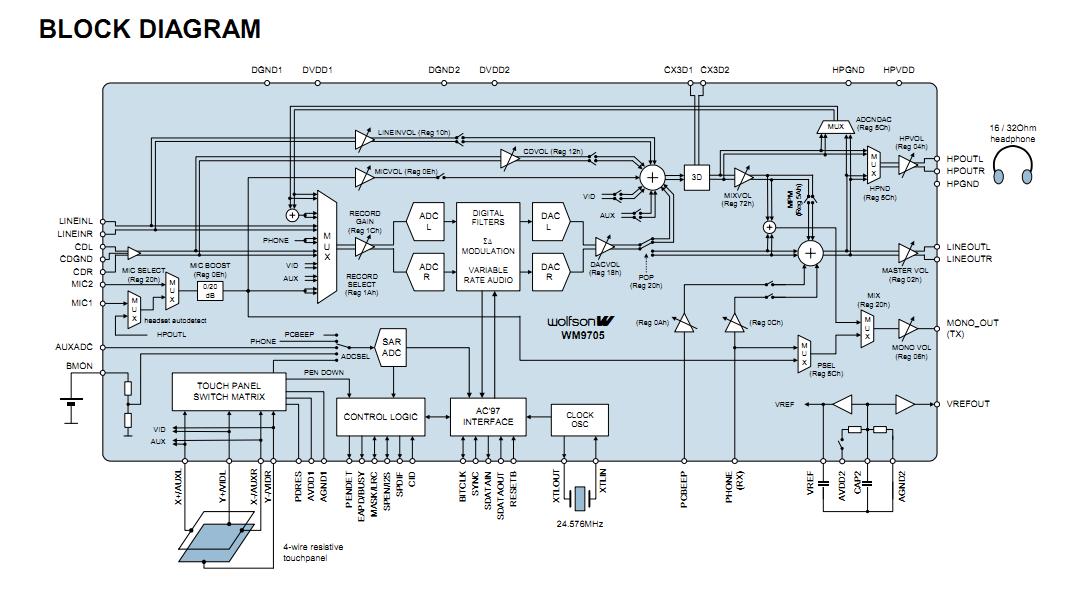

The WM9705 is a high-quality stereo audio codec with an integrated touch screen controller. The audio section is compliant with the Intel AC’97 Rev 2.2 specification. The WM9705 performs full-duplex 18-bit codec functions and supports variable sample rates from 8 to 48k samples/s with high signal to noise ratio. Optional AC’97 features include 3D sound enhancement, line-level outputs, stereo buffered headphone outputs, hardware sample rate conversion, primary/secondary mode operation and S/PDIF output. Headphone auto-detect, I2S output and headphone buffer on the mono output are included. The WM9705 is suitable for Personal Digital Assistants and Smartphones and PocketPC systems.

Parametrics

WM9705 absolute maximum ratings: (1)Digital supply voltage: -0.3V to +7V; (2)Analogue supply voltage: -0.3V to +7V; (3)Voltage range digital inputs: DVSS -0.3V to DVDD +0.3V; (4)Voltage range analogue inputs: AVDD -0.3V to AVDD +0.3V; (5)Operating temperature range, TA: -25 to +85℃; (6)Storage temperature after soldering: -65 to +150℃; (7)Package body temperature (soldering 10 seconds): +240℃; (8)Package body temperature (soldering 2 minutes): +183℃.

Features

WM9705 features: (1)AC’97 rev2.2 compliant codec with pen digitiser; (2)18-bit stereo audio codecs; (3)On-chip sample rate conversion; (4)Multiple channel input mixer; (5)S/PDIF digital audio output; (6)Headphone drivers on AUX and MONO outputs; (7)4-wire touch screen interface with co-ordinate and pressure measurement, and pen-down detection; (8)Wake-up from sleep mode on pen down; (9)3V to 5V operation; (10)Extensive power management features including hardware power down option; (11)Standard AC’97 pinout in 48-pin TQFP package or 48-pin QFN package.
