Product Summary

The MCP4822 is a 12-Bit DACs with Internal VREF and SPI™ Interface. The MCP4822 of DACs provide high accuracy and low noise performance for industrial applications where calibration or compensation of signals (such as temperature, pressure and humidity) are required. The MCP4822 devices are available in the extended temperature range and PDIP, SOIC and MSOP packages.

Parametrics

MCP4822 absolute maximum ratings: (1)VDD: 6.5V; (2)All inputs and outputs: AVSS – 0.3V to VDD + 0.3V ; (3)Current at Input Pins: ±2 mA; (4)Current at Supply Pins: ±50 mA; (5)Current at Output Pins: ±25 mA; (6)Storage temperature: -65°Cto +150°C; (7)Ambient temp. with power applied: -55°Cto +125°C; (8)Maximum Junction Temperature (TJ): +150°C.

Features

MCP4822 features: (1)12-Bit Resolution; (2)±0.2 LSb DNL (typ.); (3)±2 LSb INL (typ.); (4)Single or Dual Channel; (5)Rail-to-Rail Output; (6)Fast Settling Time of 4.5 μs; (7)2.048V Internal Band Gap Voltage Reference; (8)2.7V to 5.5V Single-Supply Operation; (9)Extended Temperature Range: -40°C to +125°C.

Diagrams

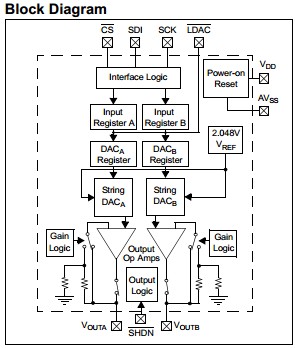

MCP4822 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
MCP4822-E/MS
MCP4822-E/MS

Microchip Technology

DAC (D/A Converters) Dual 12-bit DAC

Data Sheet

0-1: $1.90
1-10: $1.80
10-25: $1.50
25-100: $1.36
MCP4822-E/P
MCP4822-E/P

Microchip Technology

DAC (D/A Converters) Dual 12-bit DAC

Data Sheet

0-1: $1.90
1-10: $1.80
10-25: $1.50
25-100: $1.36
MCP4822-E/SN
MCP4822-E/SN

Microchip Technology

DAC (D/A Converters) Dual 12-bit DAC

Data Sheet

0-1: $1.90
1-10: $1.80
10-25: $1.50
25-100: $1.36
MCP4822T-E/MS
MCP4822T-E/MS

Microchip Technology

DAC (D/A Converters) Dual 12-bit DAC

Data Sheet

0-1735: $1.39
1735-2500: $1.39
MCP4822T-E/SN
MCP4822T-E/SN

Other


Data Sheet

Negotiable
MCP4822
MCP4822

Other


Data Sheet

Negotiable
