Product Summary

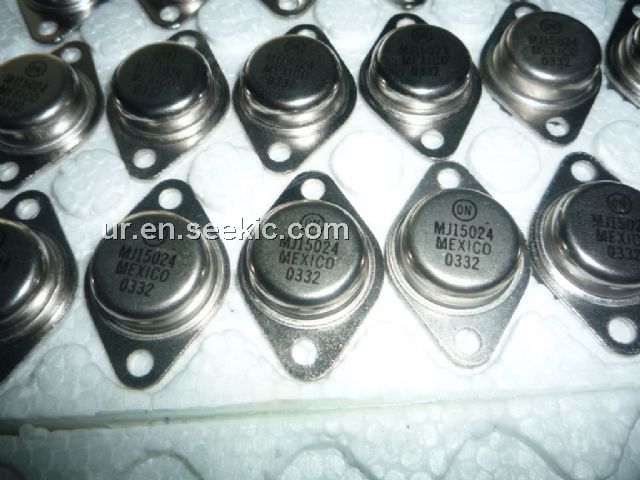

The MJ15024 is an NPN planar silicon transistor.
Parametrics
MJ15024 absolute maximum ratings: (1)collector-base voltage: 400V; (2)Collector-emitter voltage: 250V; (3)emitter-base voltage: 7V; (4)collector current: 16A; (5)Collector dissipation: 250W; (6)junction temperature: 150℃; (7)storage temperature: -50 to 150℃.
Features
MJ15024 features: (1)high current capability; (2)high power dissipation; (3)complementary to MJ15025.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MJ15024G |
ON Semiconductor |
Transistors Bipolar (BJT) 16A 250V 250W NPN |
Data Sheet |
|
|
||||||||||||
|
MJ15024 |
ON Semiconductor |
Transistors Bipolar (BJT) 16A 250V 250W NPN |
Data Sheet |
Negotiable |
|
||||||||||||
