Product Summary

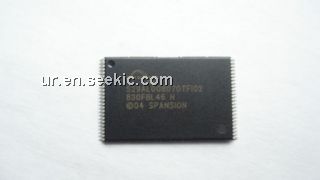

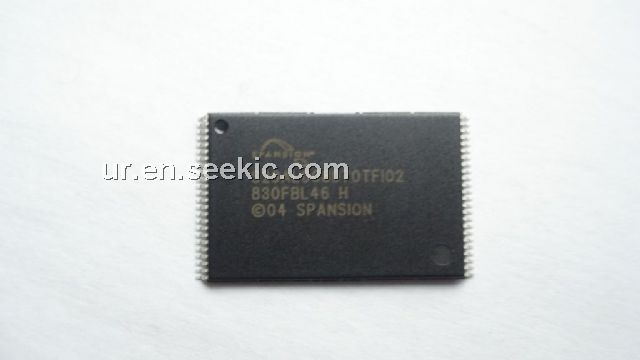

The S29AL008D70TFI02 is an 8M CMOS 3.0V-only boot sector flash memory. It is offered in 48-ball FBGA, 44-pin SO, and 48-pin TSOP packages. The S29AL008D70TFI02 is manufactured using Spansions 200nm process technology, and offers all the features and benefits of the Am29LV800B, which was manufactured using 0.32μm process technology.

Parametrics

S29AL008D70TFI02 absolute maximum ratings: (1)storage temperature plastic packages: -65 to 150℃; (2)ambient temperature with power applied: -65 to 125℃; (3)voltage with respect to ground: -0.5 to 4V; (4)output short circuit current: 200mA.

Features

S29AL008D70TFI02 features: (1)single power supply operation; (2)manufactured on 200nm process technology; (3)flexible sector architecture; (4)high performance; (5)ultra low power consumption; (6)unlock bypass program command; (7)top or bottom boot block configurations; (8)embedded algorithms.

Diagrams

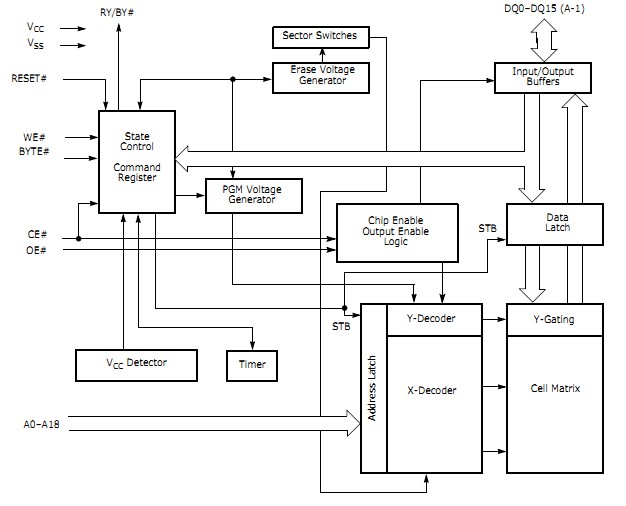

S29AL008D70TFI02 block diagram
