Product Summary

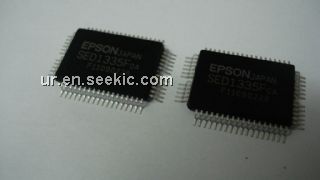

The SED1335F is a family of versatile LCD controller ICs that can display text and graphics on a medium size LCD panel. The software is compatible among all three chips. The SED1335F can display layered text and graphics, scroll the display in any direction and partition the display into multiple screens.
Parametrics
SED1335F absolute maximum ratings: (1)Supply voltage range:–0.3 to 7.0 V; (2)Input voltage range:–0.3 to VDD + 0.3 V; (3)Power dissipation:300 mW; (4)Operating temperature range:–20 to 75 °C; (5)Storage temperature range:–65 to 150 °C;(6)Soldering temperature (10 seconds):260°C.
Features
SED1335F features: (1)Text, graphics and combined text/graphics display modes; (2)Three overlapping screens in graphics mode; (3)640×256 pixel LCD panel display resolution; (4)Programmable cursor control; (5)Smooth horizontal and vertical scrolling of all or part of the display; (6)Internal character generator; (7)6800 and 8080 family microprocessor interfaces; (8)Low power consumption—3.5 mA operating current (VDD = 3.5V), 0.05 μA standby current; (9)Available in 60-pin QFPs.

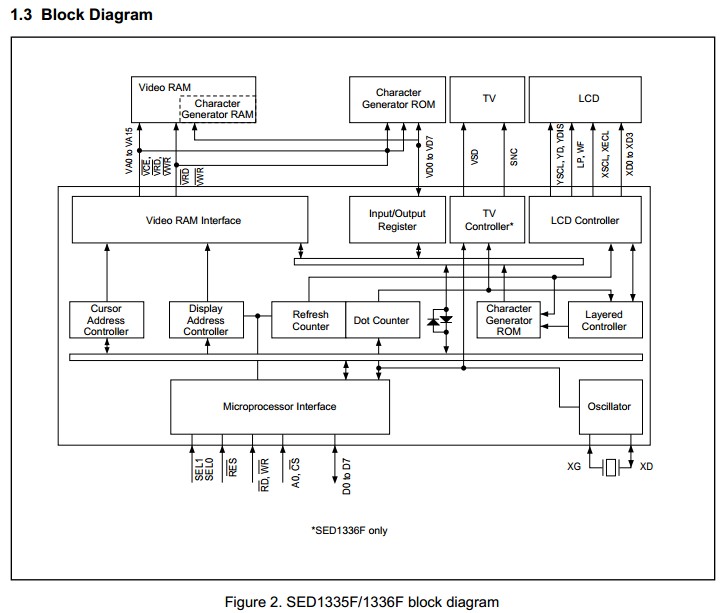

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 SED1335FOB |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
SED1335FOA |
Seiko Instruments |
LCD Drivers SMOS Controller Chip |
Data Sheet |
Negotiable |
|
||||
|
SED1335F0A |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
SED1335F |
Other |
|
Data Sheet |
Negotiable |
|
||||
