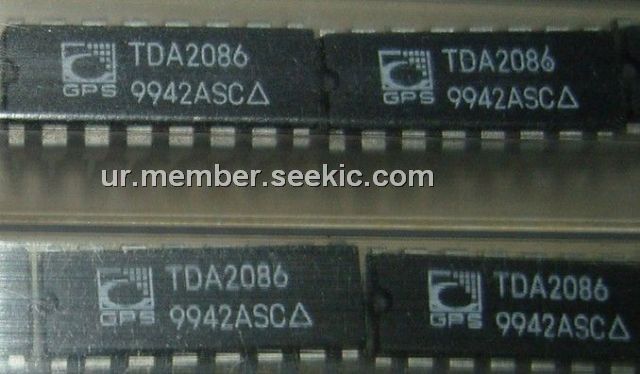

TDA2086

Low supply current consumption, phase control integrated circuit, DIP, 5V, Warning LED drive circuit

Rated 5 Rating 5 | reviews | Write a review

Price:: US $7.90~50.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $7.90~50.00

PartNumber:: TDA2086

Brand:: Green Power Solutions srl - GPS | Pack: DIP | D/C: 99+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. qi's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-01

From Other Seller

Part Number:TDA2086
US $7.90 - 50.00
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
HEF4093BT

US $0.15 - 1.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

The TDA2086 is a silicon integrated circuit designed for use in closed or open loop phase control circuits of AC with resistive or inductive loads. In closed loop systems analog voltage or tacho frequency feedback may be used. The TDA2086 was primarily designed for motorspeed control in power drills food mixers washing machines etc. In the event of an open circuit tacho generator connection the TDA2086 will demand full speed/power.

Parametrics

TDA2086 absolute maximum ratings: (1)Triac gate voltage:4 V; (2)Repetitive peak input current:80 mA; (3)Non repetitive peak input current:200 mA; (4)Peak input current:2 mA; (5)Repetitive peak input current:80 mA; (6)Non repetitive peak input current:200 mA; (7)Peak input current (ISYNC):±1mA; (8)Peak input current (VSYNC):±1mA; (9)Inhibit input voltage:Vreg; (10)-5V regulator current:10 mA; (11)Control amp input voltage:Vreg; (12)Tacho input current:l20 mA; (13)Operating ambient temperature:0℃ to +85℃; (14)Storage temperature:-55℃ to +125℃.

Features

TDA2086 features: (1)Power direct from AC mains or DC line; (2)5V supply available for ancillary circuitry; (3)Low supply current consumption; (4)Average or peak load current limiting; (5)Ramp generator to provide controlled acceleration; (6)Negative triac firing pulses 100mA guaranteed minimum; (7)Warning LED drive circuit; (8)Actual speed derived from tachogenerator frequency or analog feedback; (9)Well defined control voltage phase angle relationship; (10)Inhibit input for use with thermistor temperature sensors.
