Product Summary

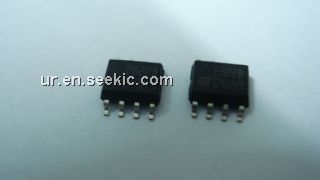

The TDA2822D is a monolithic integrated circuit in 8 lead (SO-8) package. TDA2822D is intended for use as dual audio power amplifier in portable cassette players, radios and CD players.
Parametrics
TDA2822D absolute maximum ratings: (1)supply voltage:15V; (2)peak output: 1A; (3)total power dissipation: 0.5W; (4)storage and junction temperature: -40 to 150 °C.
Features
TDA2822D features: (1)supply voltage down to 1.8V; (2)lowcrossover distortion; (3)low quiescent current; (4)bridge or stereo configuration.

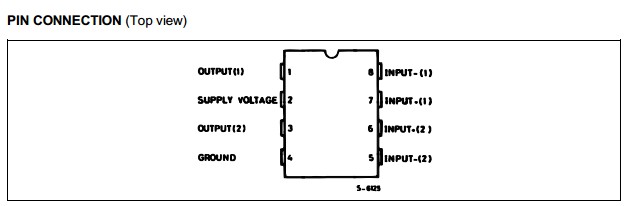

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TDA2822D |
STMicroelectronics |
Audio Amplifiers Dual Lo-Volt Pwr Amp |
Data Sheet |
|
|
||||||||||||
|
TDA2822D013TR |
STMicroelectronics |
Audio Amplifiers Dual Lo-Volt Pwr Amp |
Data Sheet |
|
|
||||||||||||
