Product Summary
The TXB0104PWR is a 4-bit noninverting translator which uses two separate configurable power-supply rails. The A port is designed to track VCCA. VCCA accepts any supply voltage from 1.2 V to 3.6 V. The B port is designed to track VCCB. VCCB accepts any supply voltage from 1.65 V to 5.5 V. This allows for universal low-voltage bidirectional translation between any of the 1.2-V, 1.5-V, 1.8-V, 2.5-V, 3.3-V, and 5-V voltage nodes. VCCA should not exceed VCCB.The TXB0104PWR is designed so that the OE input circuit is supplied by VCCA.
Parametrics
TXB0104PWR absolute maximum ratings:(1)Input voltage range: –0.5 to 6.5 V; (2)Voltage range applied to any output in the high-impedance or power-off state: –0.5 to 6.5 V; (3)Input clamp current: –50 mA; (4)Output clamp current: –50 mA; (5)Continuous output current: ±50 mA; (6)Storage temperature range: –65 to 150°C.
Features
TXB0104PWR features: (1)1.2 V to 3.6 V on A Port and 1.65 V to 5.5 V on B Port (Vcca≤Vccb); (2)OE Input Circuit Referenced to Vcca; (3)Low Power Consumption, 4-μA Max Icc; (4)ESD Protection Exceeds JESD 22; (5)Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II.
Diagrams

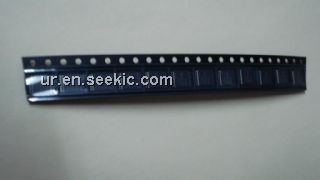

| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TXB0104PWR |
Texas Instruments |
Translation - Voltage Levels 4-Bit Bi-directional V-Level Translator |
Data Sheet |
|
|
||||||||||||
|
TXB0104PWRG4 |
Texas Instruments |
Translation - Voltage Levels 4-Bit Bi-directional V-Level Translator |
Data Sheet |
|
|
||||||||||||
