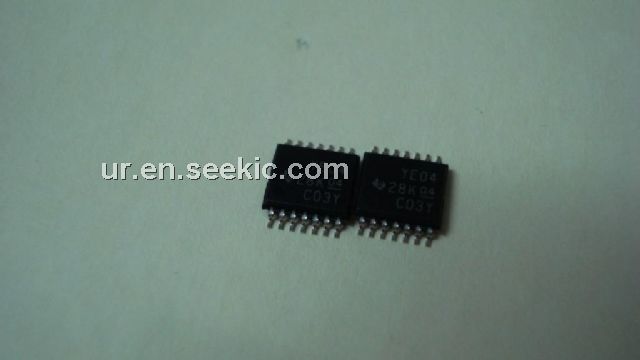

Product Summary
The YE04 4-bit noninverting translator uses two separate configurable power-supply rails. The A port is designed to track Vcca. Vcca accepts any supply voltage from 1.2 V to 3.6 V. The B port is designed to track Vccb. Vccb accepts any supply voltage from 1.65 V to 5.5 V. This allows for universal low voltage bidirectional translation between any of the 1.2-V, 1.5-V, 1.8-V, 2.5-V, 3.3-V, and 5-V voltage nodes. Vcca should not exceed Vccb. The YE04 device is fully specified for partial-power-down applications using I(off). The I(off) circuitry disables the outputs, preventing damaging current backflow through the device when it is powered downdevice is fully specified for partial-power-down applications using I(off).
Parametrics
YE04 absolute maximum ratings: (1)Supply voltage range:–0.5 to 4.6V; (2)Input voltage range:–0.5 to 6.5V; (3)Input clamp current: –50 mA; (4)Output clamp current:–50 mA; (5)Storage temperature range:–65 to 150 °C.
Features
YE04 features: (1)1.2 V to 3.6 V on A Port and 1.65 V to 5.5 V on B Port (Vcca≤ Vccb); (2)OE Input Circuit Referenced to Vcca; (3)Low Power Consumption, 5-μA Max Icc; (4)Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II; (5)ESD Protection Exceeds JESD 22.

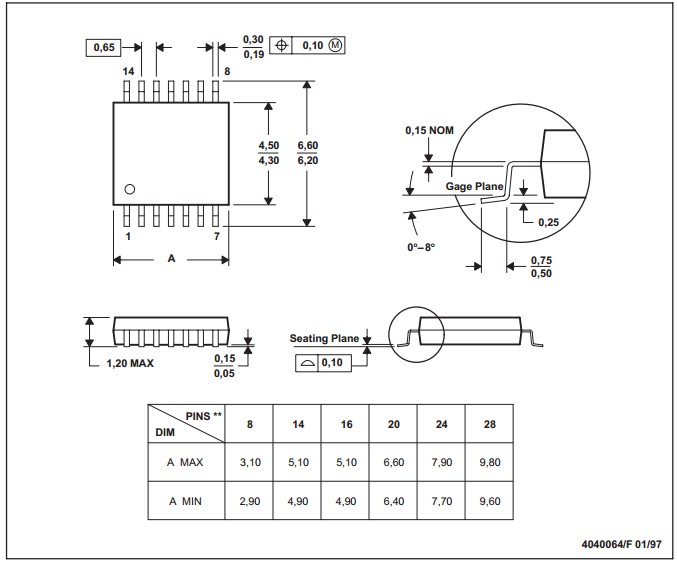

Diagrams
