Product Summary

The AD548KN is a low power, precision monolithic operational amplifier. It offers both low bias current (10 pA max, warmed up) and low quiescent current (200 μA max) and is fabricated with ion-implanted FET and laser wafer trimming technologies. The AD548KN is pinned out in a standard op amp configuration and is available in six performance grades.

Parametrics

AD548KN absolute maximum ratings: (1)Supply Voltage: ±18 V; (2)Internal Power Dissipation:500 mW; (3)Input Voltage:±18 V; (4)Output Short Circuit Duration: Indefinite; (5)Differential Input Voltage: +VS and –VS; (6)Storage Temperature Range (Q, H): –65°C to +150°C; (7)Lead Temperature Range (Soldering 60 sec): +300°C.

Features

AD548KN features: (1)Enhanced Replacement for LF441 and TL061; (2)DC Performance; (3)AC Performance; (4)Available in Plastic, Hermetic Cerdip and Hermetic Metal Can Packages and in Chip Form; (5)Available in Tape and Reel in Accordance with EIA-481A Standard; (6)Dual Version Available: AD648; (7)Surface Mount (SOIC) Package Available.

Diagrams

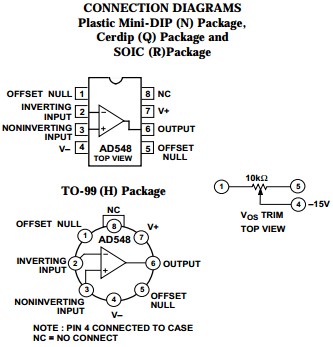

AD548KN connection diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AD548KN
AD548KN

IC OPAMP GP 1MHZ LP PREC 8DIP
Data Sheet
Negotiable
AD548KNZ
AD548KNZ

IC OPAMP GP 1MHZ LP PREC 8DIP
Data Sheet
0-1: $4.01
1-10: $3.61
10-25: $3.29
25-100: $2.97
100-250: $2.73
250-500: $2.49
500-1000: $2.17
1000-2500: $2.14
